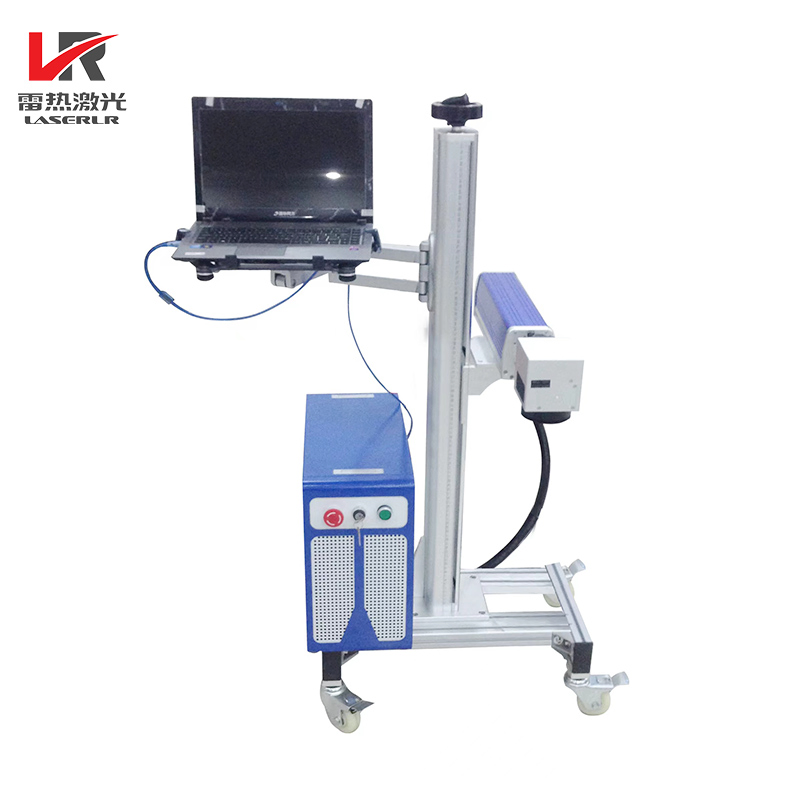

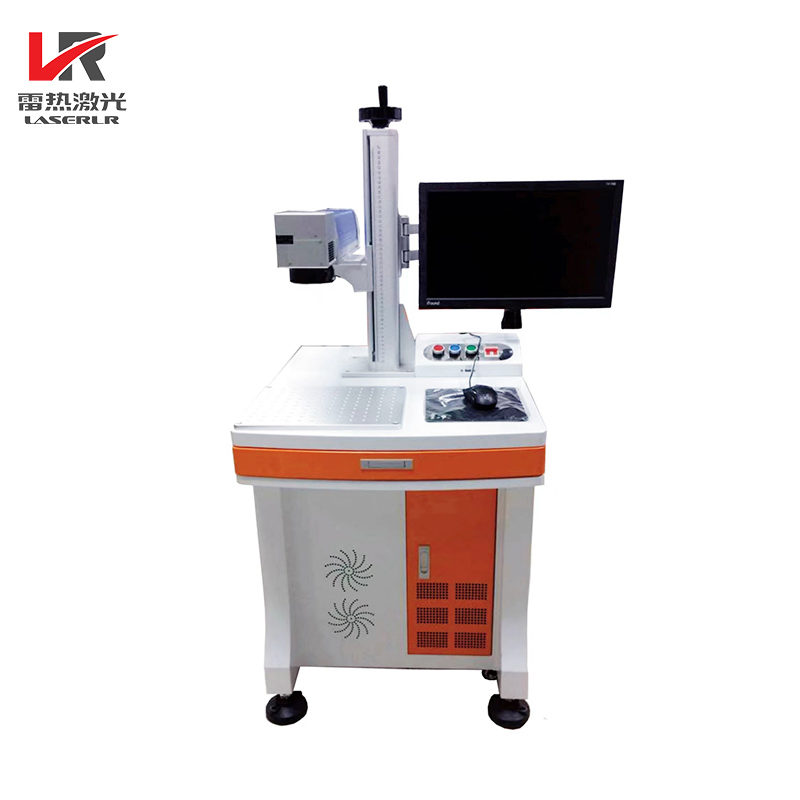

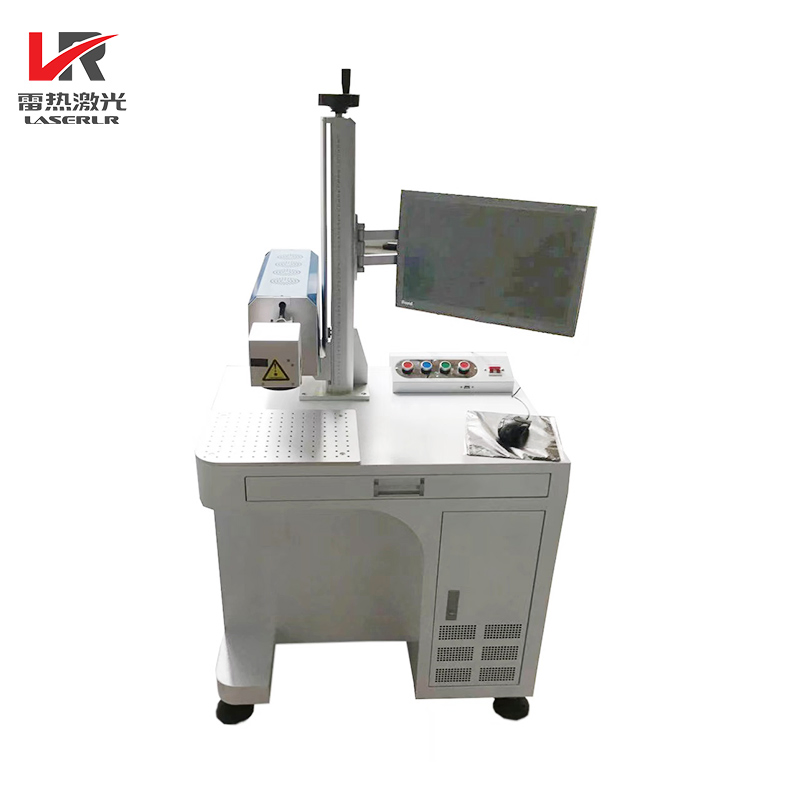

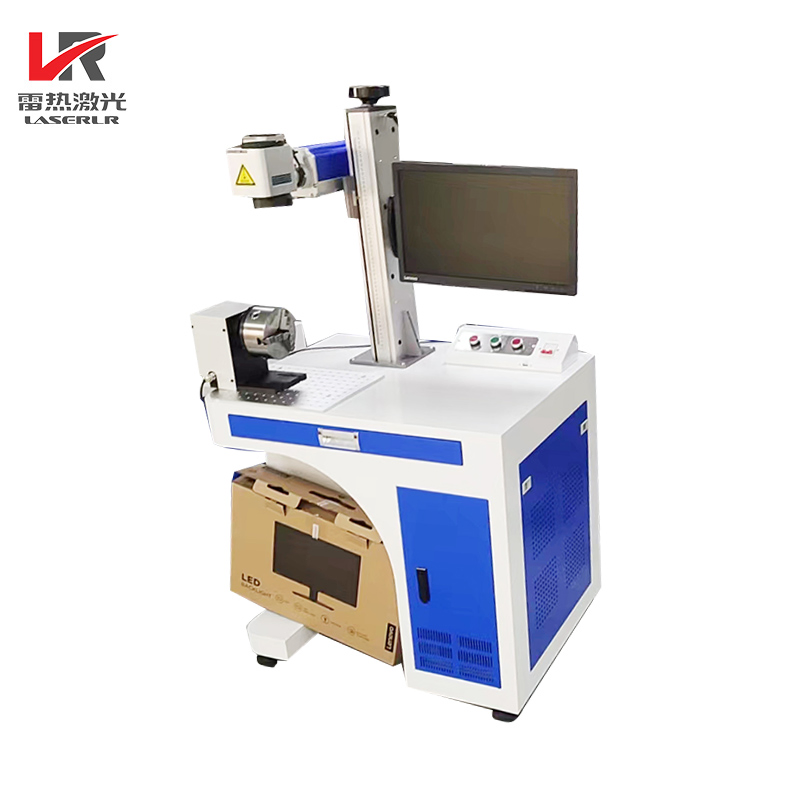

Desktop Cabinet Type 20W 30W 100W CO2 Online High Speed Metal Fiber Laser Marking Machine

Customization: Available
After-sales Service: Provided
Warranty: 12 Months

Product Description

Basic Information
Model NO.LR-DK100
Laser VisibilityInvisible
Applicable MaterialMetal or Non-Metal
Cooling SystemAir Cooling
Technical ClassContinuous Wave Laser
Laser WavelengthFiber Laser
Lasers Power20W, 30W, 50W, 60W
Output Frequency20kHz-100kHz
Engraving Depth0.5mm~2.5mm
Engraving Speed7000mm/Second
OriginChina
Product Description
Laser marking machine is a type of marking equipment that uses a laser beam to mark various surfaces of different materials. The effect of marking is to expose deep substances through the evaporation of surface materials, thereby engraving exquisite patterns, trademarks, and text.

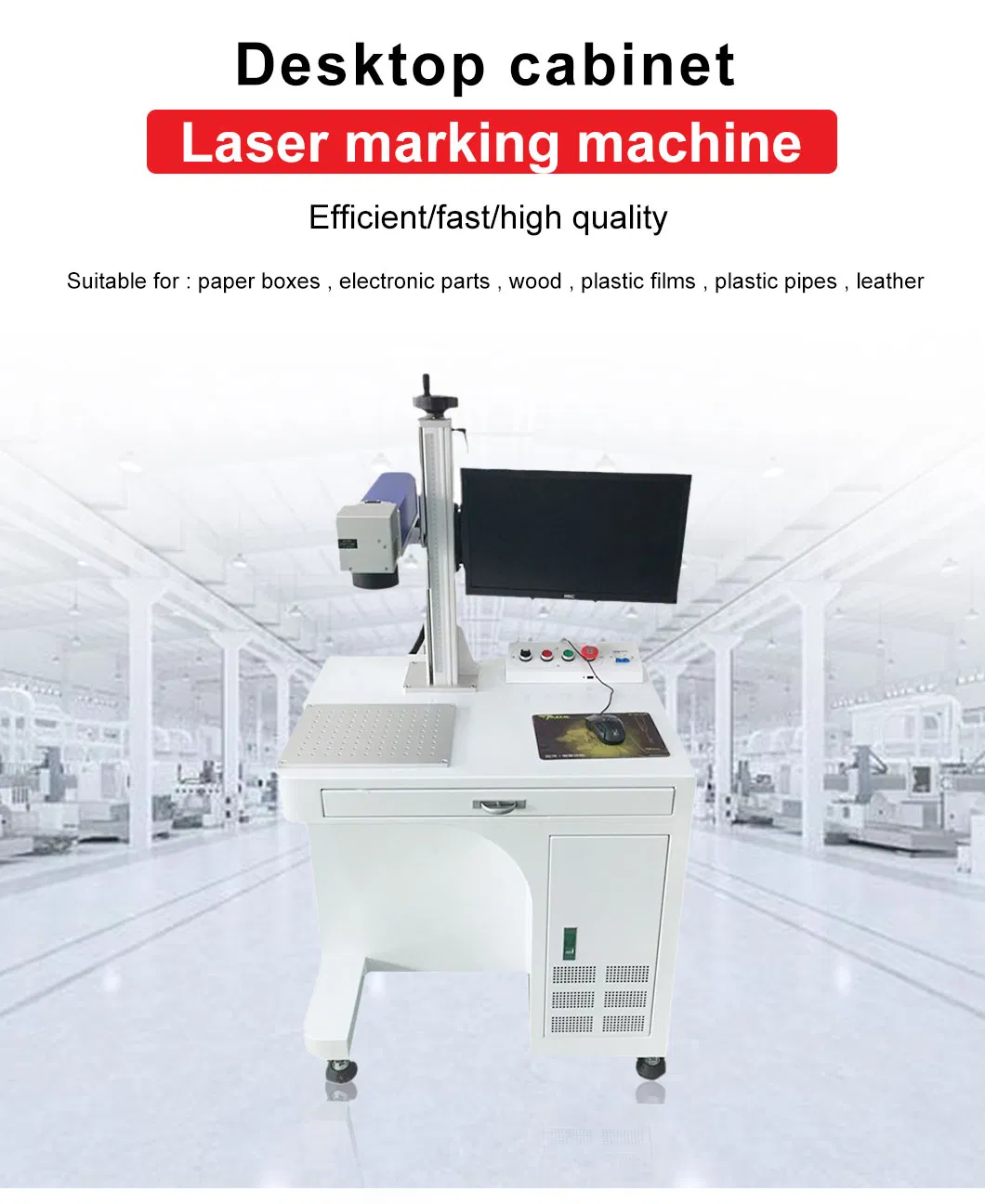

Laser Marking Machine
Fiber laser marking machine is a marking equipment used for marking on metal and partially non-metal surfaces, widely used in fields that require high levels of precision, smoothness, and accuracy including electronic components, hardware, jewelry, and automotive parts.

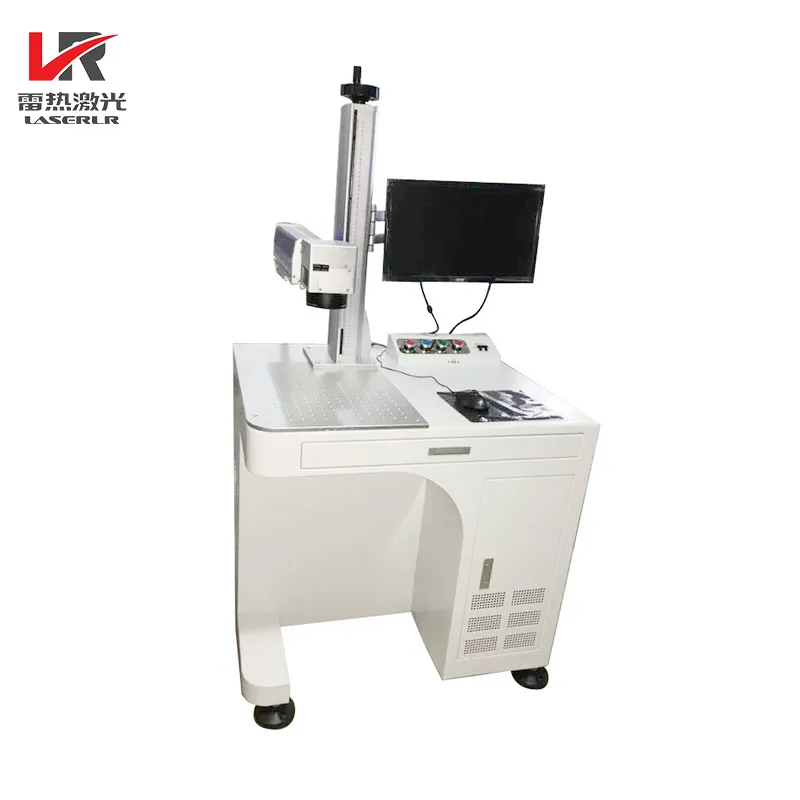

Fiber Laser 1
Fiber Laser 2
Fiber Laser 3
Technical Parameters
Power20W, 30W, 50W, 60WWave length1064nm
Beam QualityM2 < 1.3Output Power10%-100%
Output Frequency20KHz-100KHzPower Stability<±1%rms
Focus Spot Diameter<0.01mmEngraving Depth0.5mm~2.5mm
Engraving Speed7000mm/secondMinimum Line Width0.12mm
Minimum Character0.1mmRepeated Accuracy±0.003
Cooling ModelAir CoolingLife of Laser Module100,000 Hrs
Equipment Detail 1

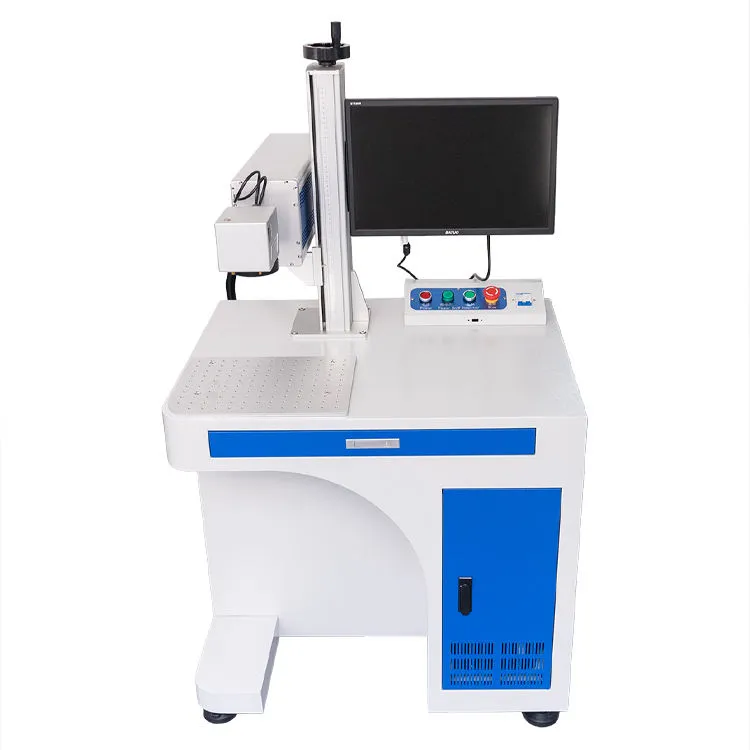

Equipment Detail 2

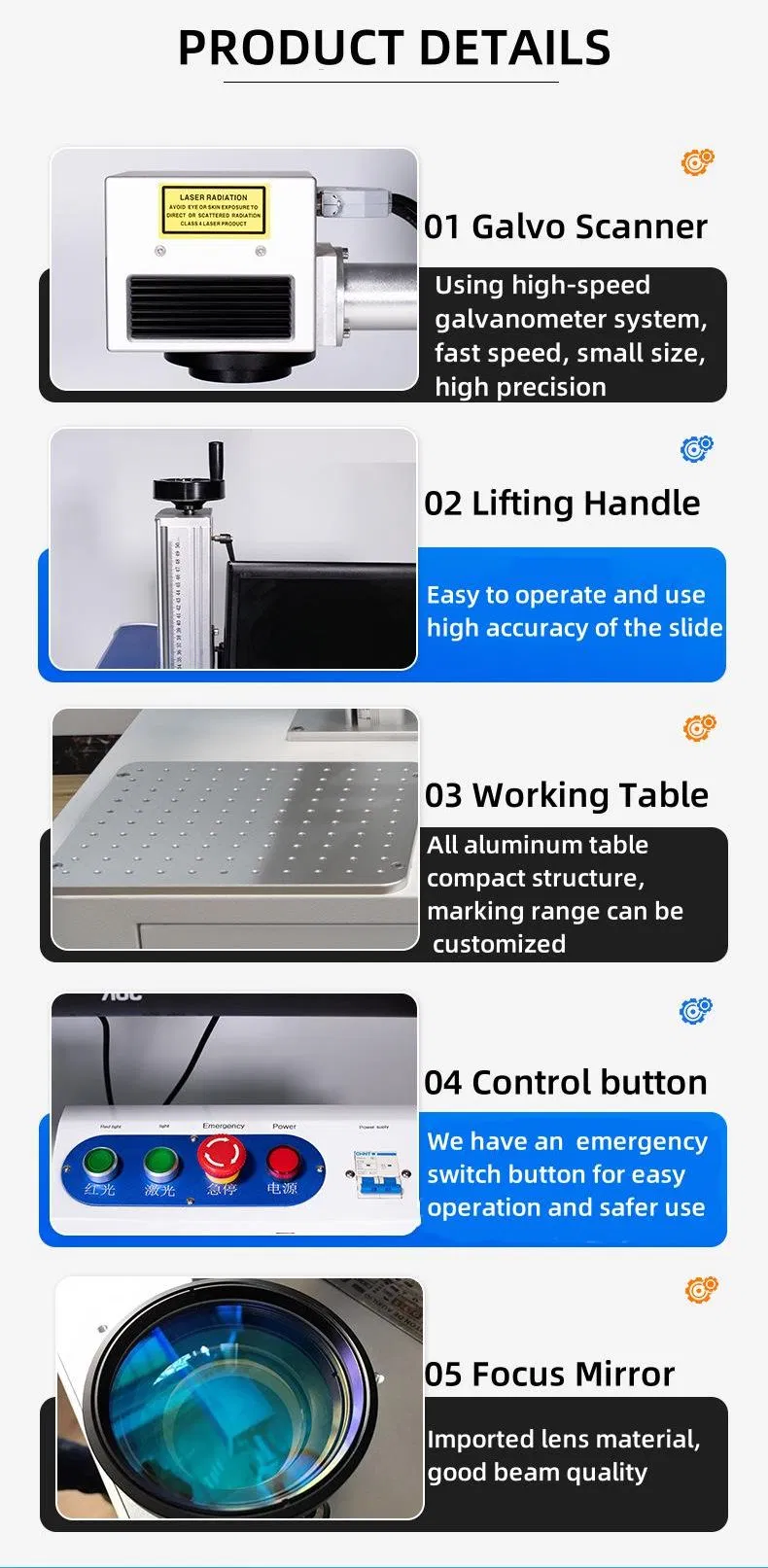

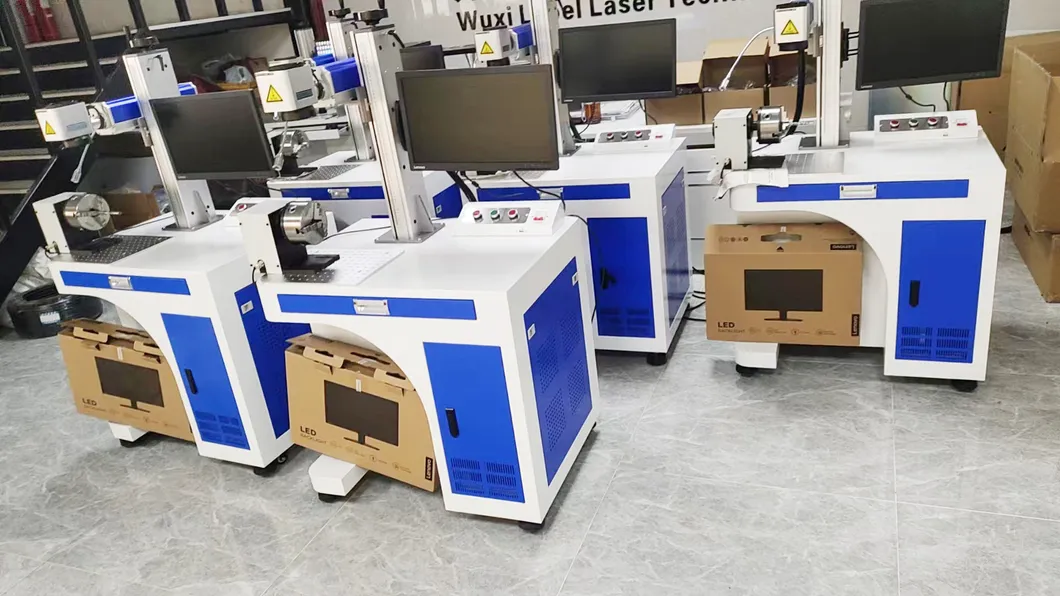

Internal Structure Operational Panel
Widely Used Applications

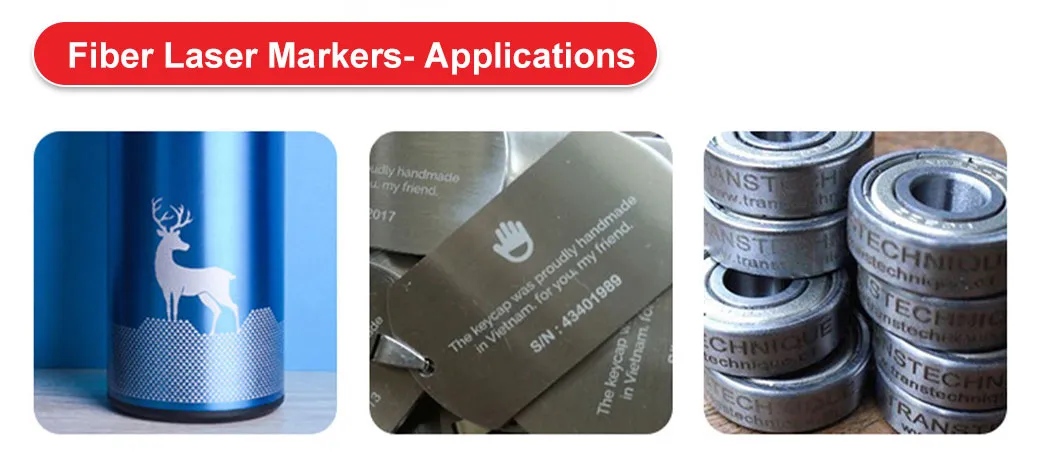

Fiber Laser Samples
Fiber Laser Materials:
Metal: Stainless steel, carbon steel, aluminum alloy, copper, gold, silver, and hard alloys.
Plastic: Hard plastic, PVC material, etc.
CO2 Laser Samples
CO2 Laser Materials:
Non-metallic: Wood, bamboo, paper, plastic (PE/ABS/PVC), leather, rubber, acrylic, and fabric.
Customization Samples
UV Laser Materials:
Glass: Surface and internal carving of glass and crystal products. Also applicable to mobile phone screens, LCDs, and PCB boards.
Related Products

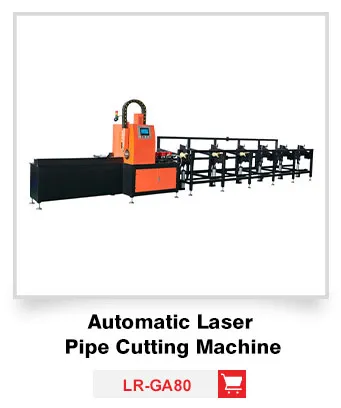

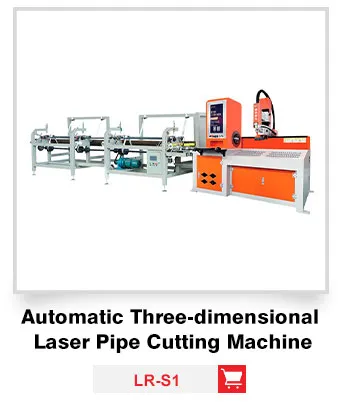

Pipe Cutting Machine

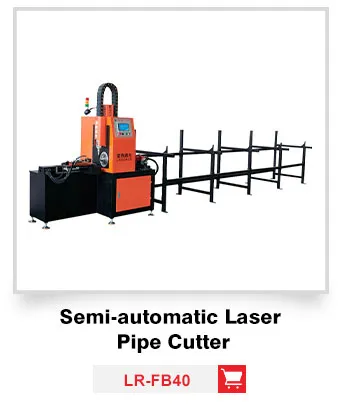

CNC Laser Cutting

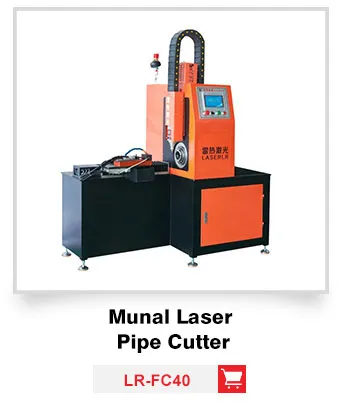

Punching Machine

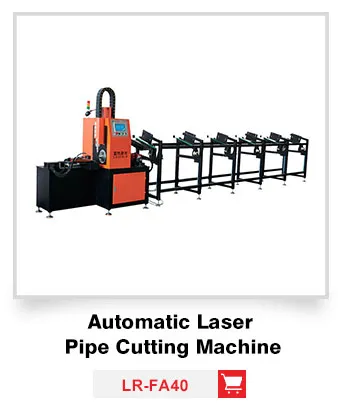

Laser Product 1
Laser Product 2

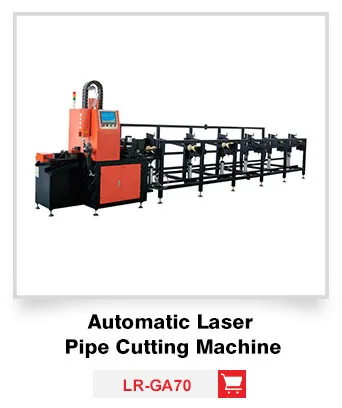

Laser Product 3
Company Profile

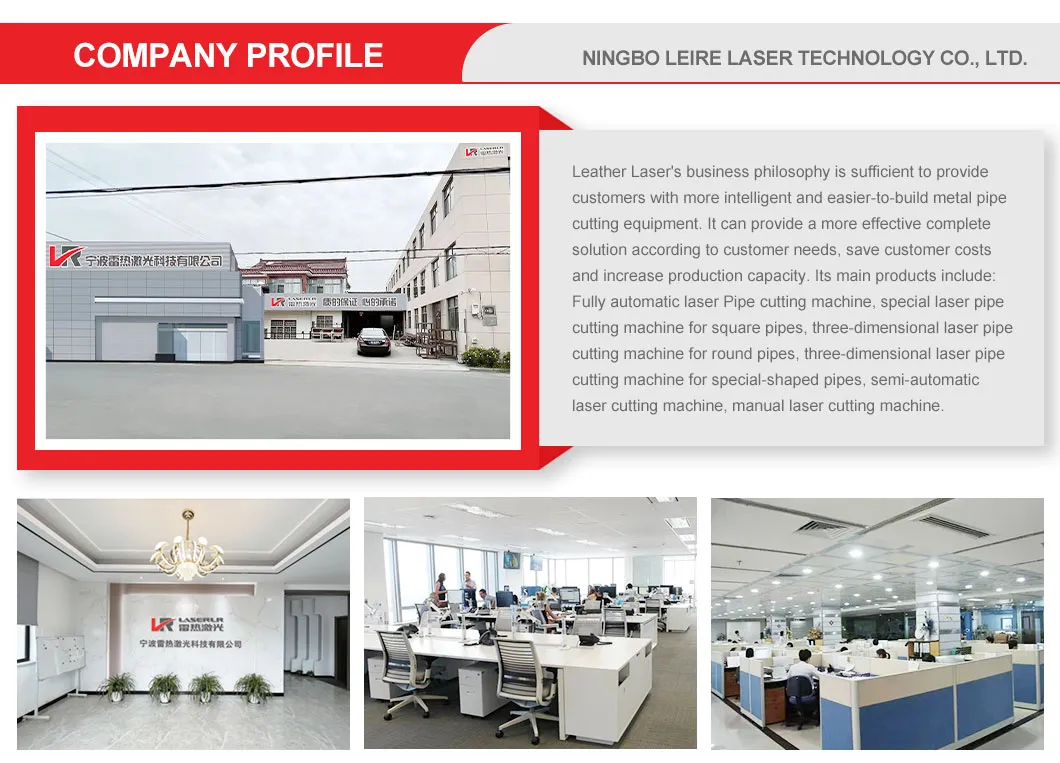

Factory Overview
The company was founded in 2018. It is a professional metallurgical company integrating design, manufacturing, and sales. As an innovative enterprise of pipe cutting equipment, we focus on the field of metal pipe processing. Adhering to the corporate mission of becoming a global brand supplier of pipe cutting equipment, we change the future with intelligent manufacturing and win market recognition with products and technology.
Production Line

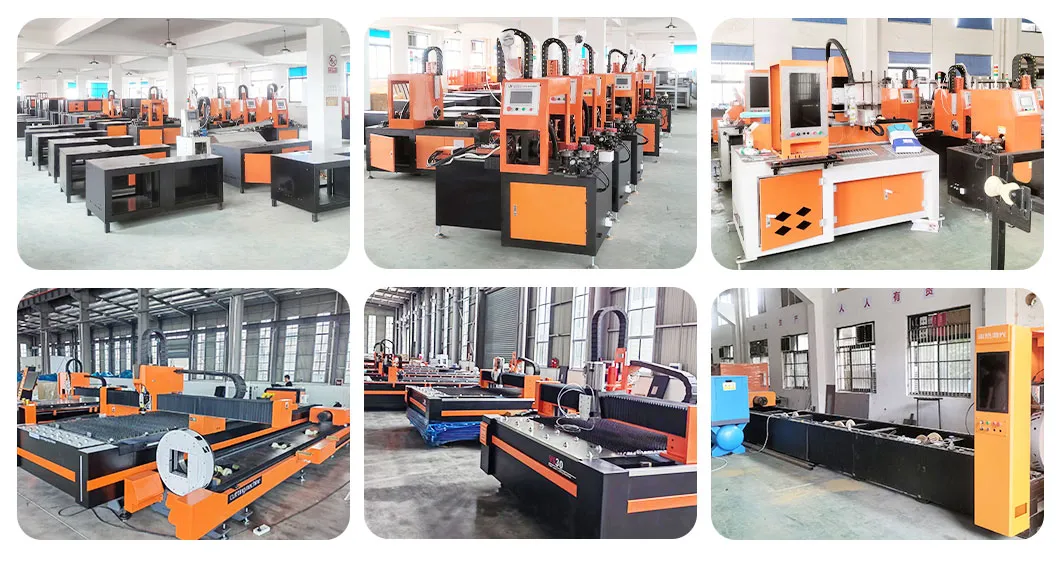

Workshop
Frequently Asked Questions
Q1: What materials can the fiber laser marking machine process? A: It is suitable for all metal materials such as stainless steel, carbon steel, aluminum, copper, and hard alloys, as well as some hard plastics like PVC.
Q2: How deep can this laser machine engrave? A: The engraving depth ranges from 0.5mm to 2.5mm, depending on the material and power settings.
Q3: What is the expected lifespan of the laser module? A: The laser module is designed for long-term industrial use with a lifespan of approximately 100,000 hours.
Q4: Does the machine require a special cooling system? A: No, this model uses an efficient air cooling system, making it compact and easy to maintain.
Q5: What is the delivery time for the machine? A: Fast delivery is available for most models, typically within 15 to 30 working days.
Q6: How is after-sales technical support handled? A: We provide remote technical guidance through dedicated support groups where engineers assist with installation and troubleshooting.
