🛠️Product Description

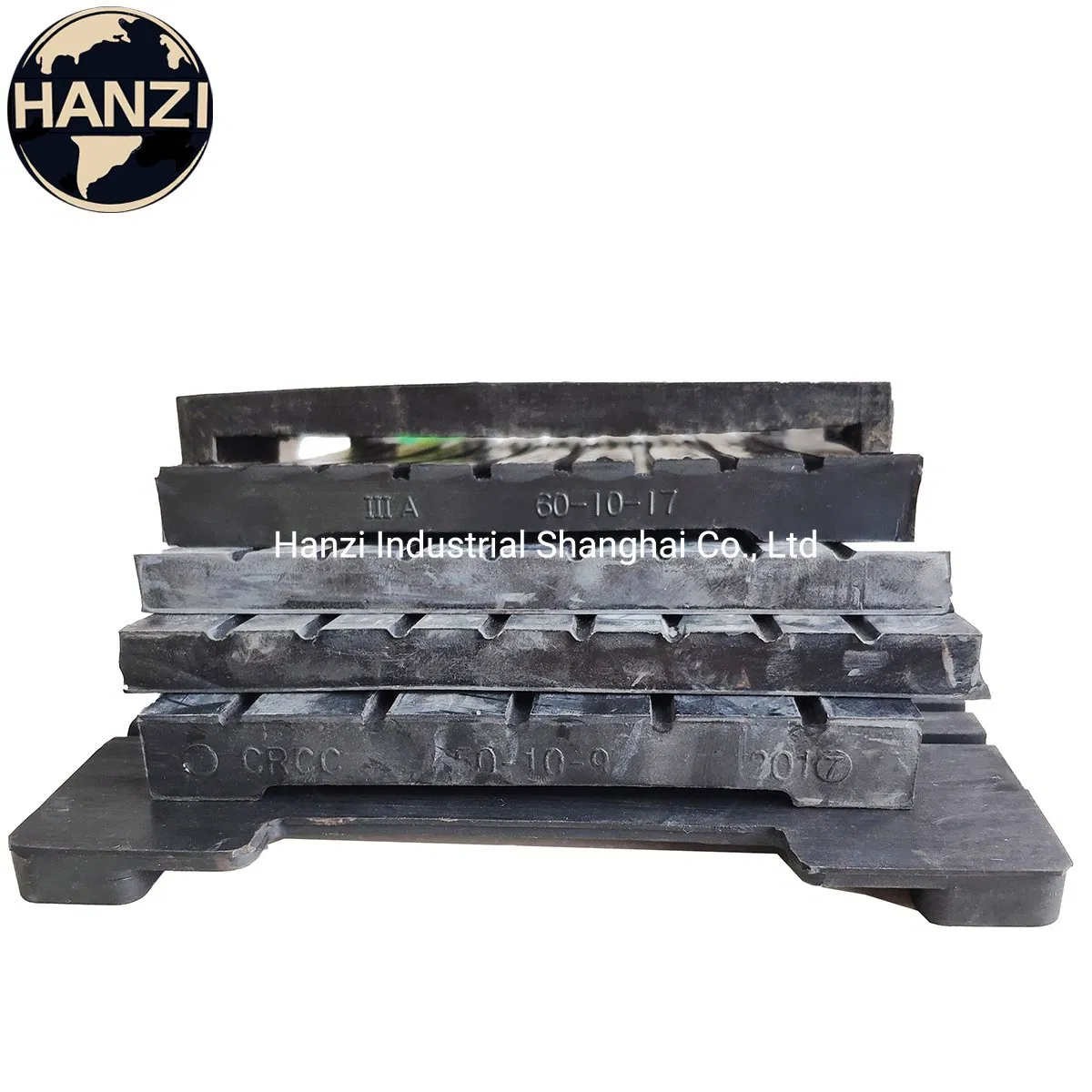

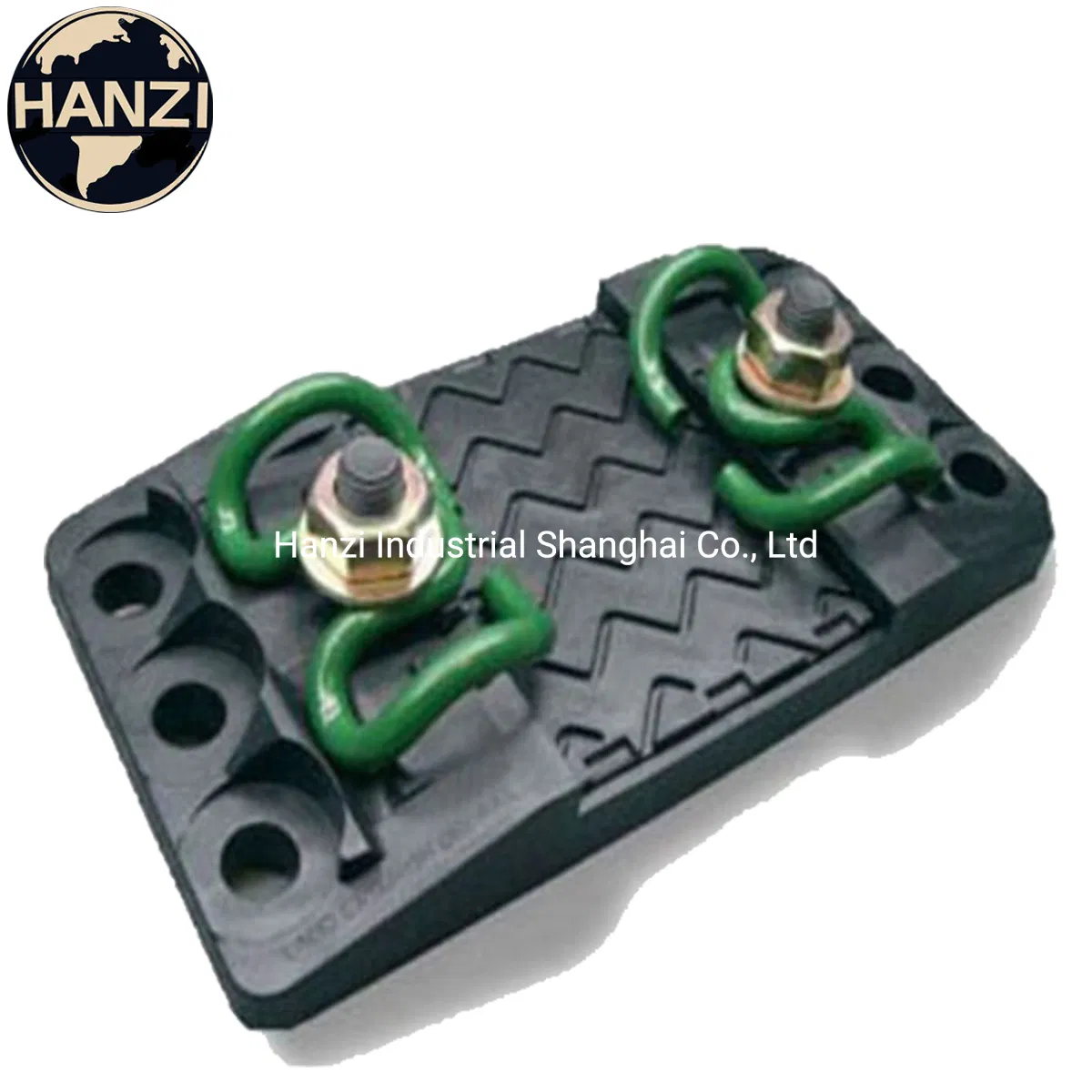

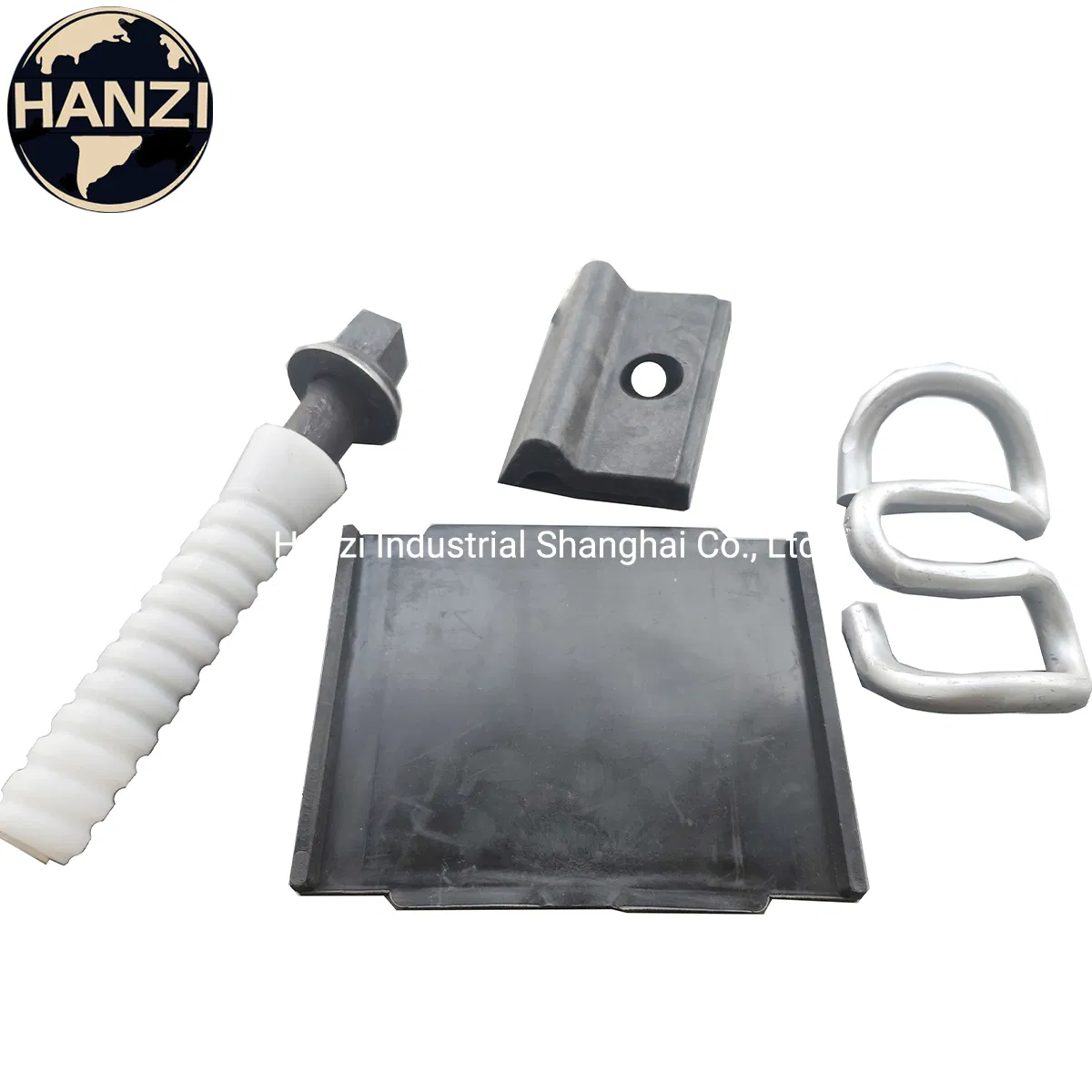

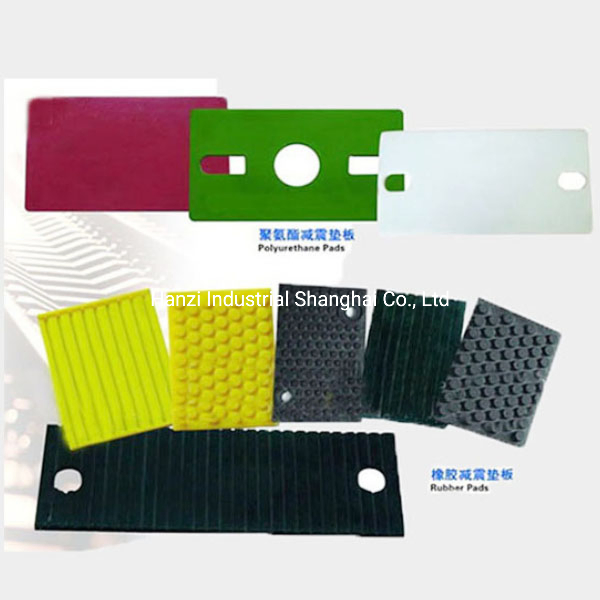

The rubber pad is an important part of the track structure. It is installed between the steel rail and the concrete sleeper. The main function is to buffer the high-speed vibration and impact generated when the vehicle passes through the rail, protect the subgrade and sleeper, and electrically insulate the signal system.

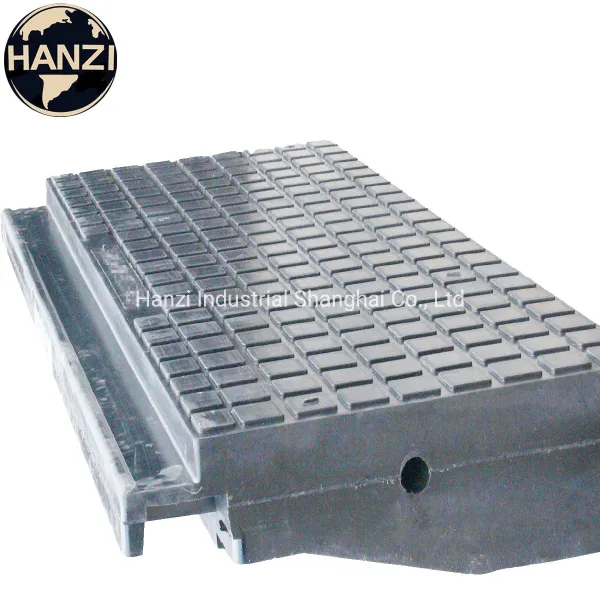

Railway Rubber Crossing Plate is applicable to railway and highway level crossings, urban light rail circular line level crossings, station platforms, and depot maintenance workshops. It provides a superior alternative to traditional asphalt and concrete surfaces.

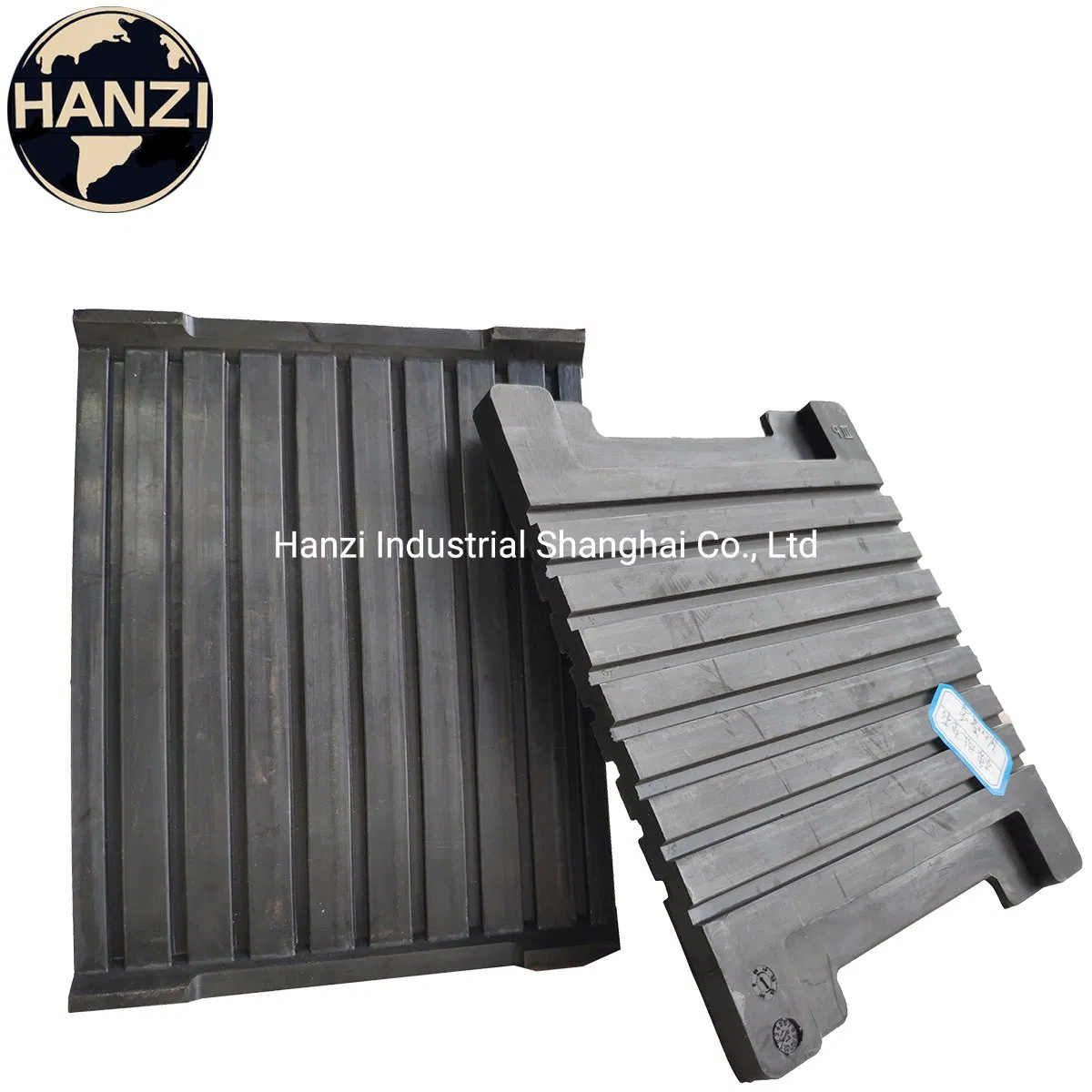

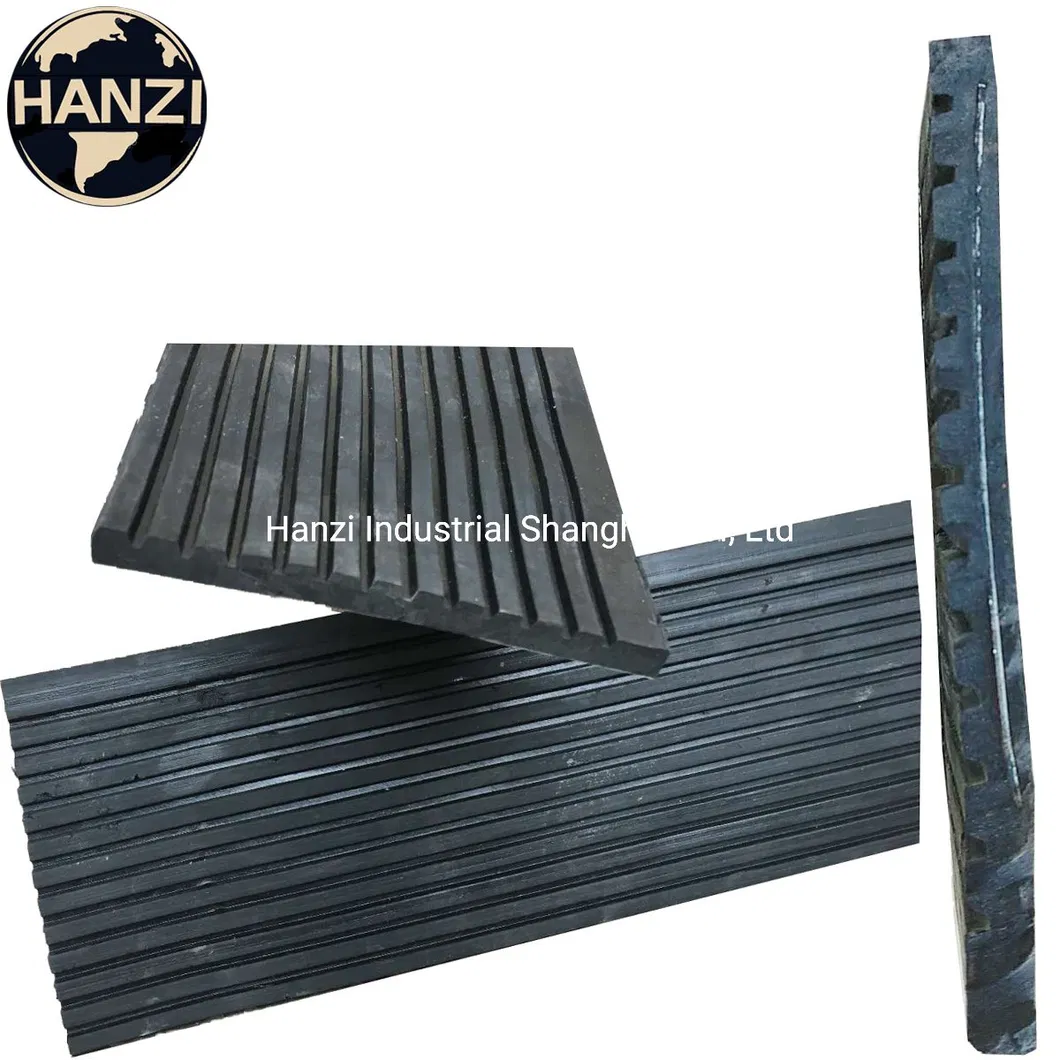

Reinforced Rubber Rail Pads
Designed for soft mounting of crane rails, these pads are vulcanized synthetic elastomer strips reinforced with steel. The upper grooved face reduces wear on both rail and support by absorbing uneven surfaces and improving contact.
- Resistant to wear, shear, crushing, oil, and UV rays.
- Working temperature: -25ºC to 100ºC.
- Noise Reduction: Typical 10% reduction in dbA.
- Vibration Reduction: Typical 48% reduction.
Material Characteristics:
- Shore hardness: 75°A ± 5°.
- Tensile strength: 12.5N/mm² (supplied) - 10.5 N/mm² (after aging).
- Elongation: 250% (supplied) - 200% (after aging).
- Permanent deformation: <5% (supplied).
🛡️Why Choose Us?
We accept any third-party inspection for all orders to provide the best assurance during cooperation. Our products undergo rigorous testing including chemical composition, tensile strength, hardness, and drop weight tests.
📜Certifications
🏢Industrial Expertise

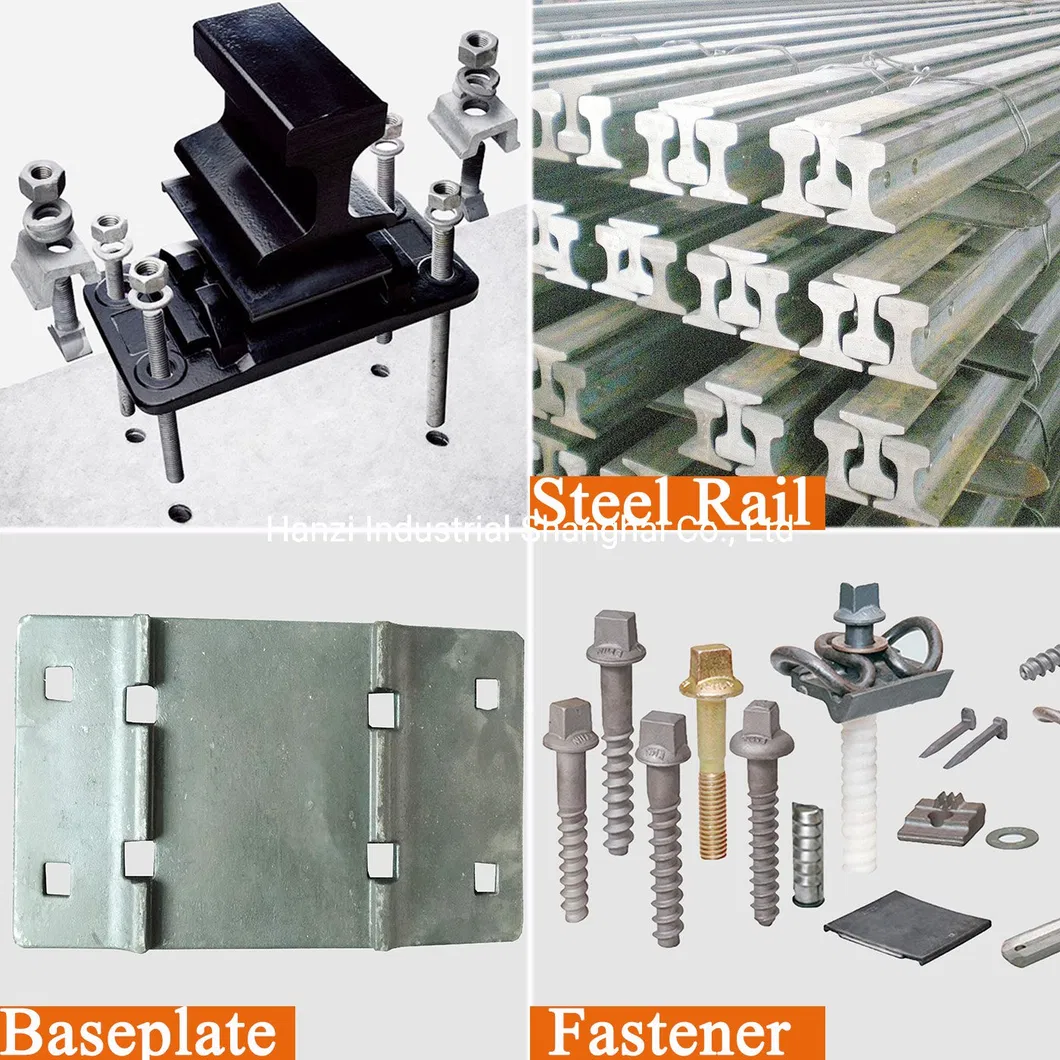

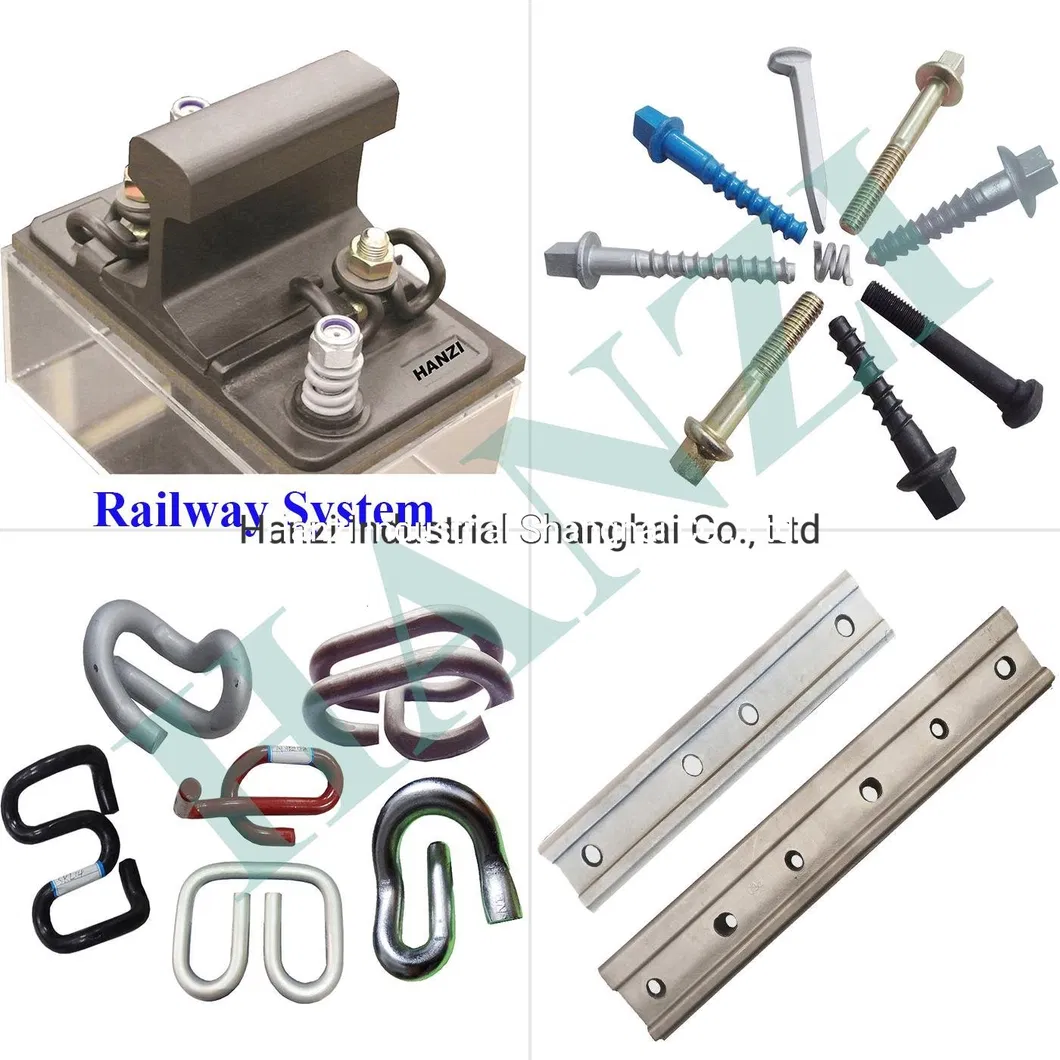

Specializing in railway accessories, we provide a wide selection of track tools: Steel Rails, Rail Clips, Fishplates, Baseplates, Rubber Pads, Rubber Crossing Plates, Screw Fasteners, Rail Anchors, Turnouts, and Wagons.

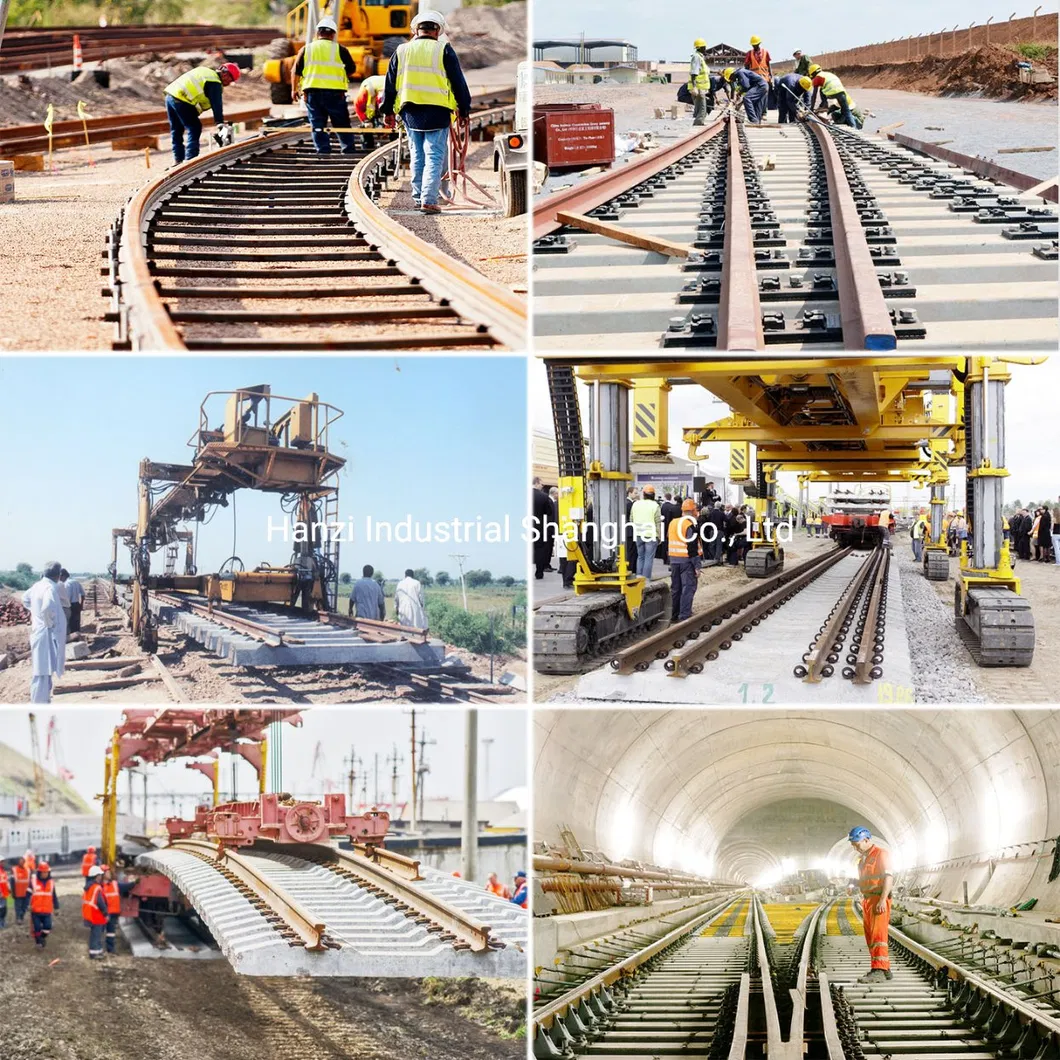

Our solutions serve railroad construction, mining companies, heavy industries, overhead cranes, tunneling industries, transit authorities, and port facilities globally.
❓Frequently Asked Questions
1. What are the primary functions of these rubber rail pads?
The pads buffer high-speed vibrations and impacts, protect subgrade and sleepers, and provide electrical insulation for signal systems.
2. What is the temperature range for the reinforced rubber pads?
They are specifically designed to operate efficiently in temperatures ranging from -25ºC to 100ºC.
3. Can you provide custom specifications?
Yes, we manufacture products according to your specific drawings and technical requirements.
4. How much vibration and noise can these pads reduce?
Typically, these reinforced pads offer a 10% reduction in noise levels (dbA) and a 48% reduction in vibrations.

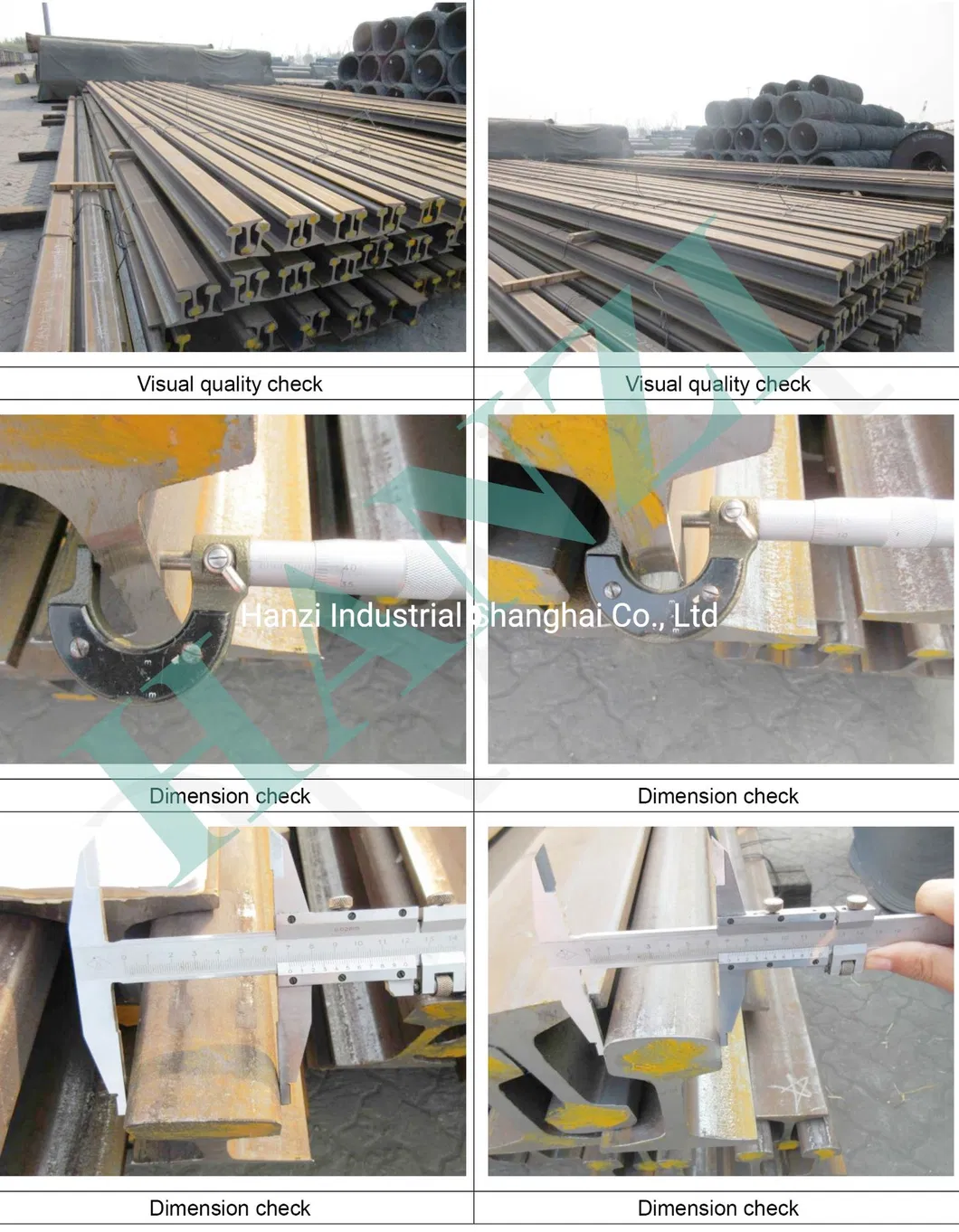

5. What quality tests do the steel rails and pads undergo?
Tests include chemical composition analysis, tensile strength tests, hardness tests, and drop weight tests to ensure maximum durability.
6. Are third-party inspections accepted?
Yes, we welcome and accept third-party inspections for any order to ensure quality compliance.
