18mm Thickness Sound Insulation Fire Resistance Composite Panel

1 / 5

18mm Thickness Sound Insulation Fire Resistance Composite Panel

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊

Basic Specifications

Bonding Strength

I(NQF)

Plywood Type

13-Ply

Emission Standard

Specifications

1220*2440*18mm

Place of Origins

Russia

Usage

Indoor, Outdoor

Transport Package

Standard Export Package

Trademark

LINSON

Origin

China

HS Code

4412390090

Production Capacity

30000 Cube/Year

📝

Product Description

Composite acoustic panel is a specialized series of products, primarily featuring rubber composite acoustic panels, cork composite acoustic panels, and plastic steel composite acoustic panels. These panels are engineered for use as vehicle floors to effectively isolate noise from the chassis, ensuring a quiet and comfortable interior environment.

Our composite acoustic panel products deliver exceptional performance in sound insulation, fire resistance, load-bearing capacity, and overall durability.

Features	Rubber Composite	Cork Composite	Plastic Steel Composite

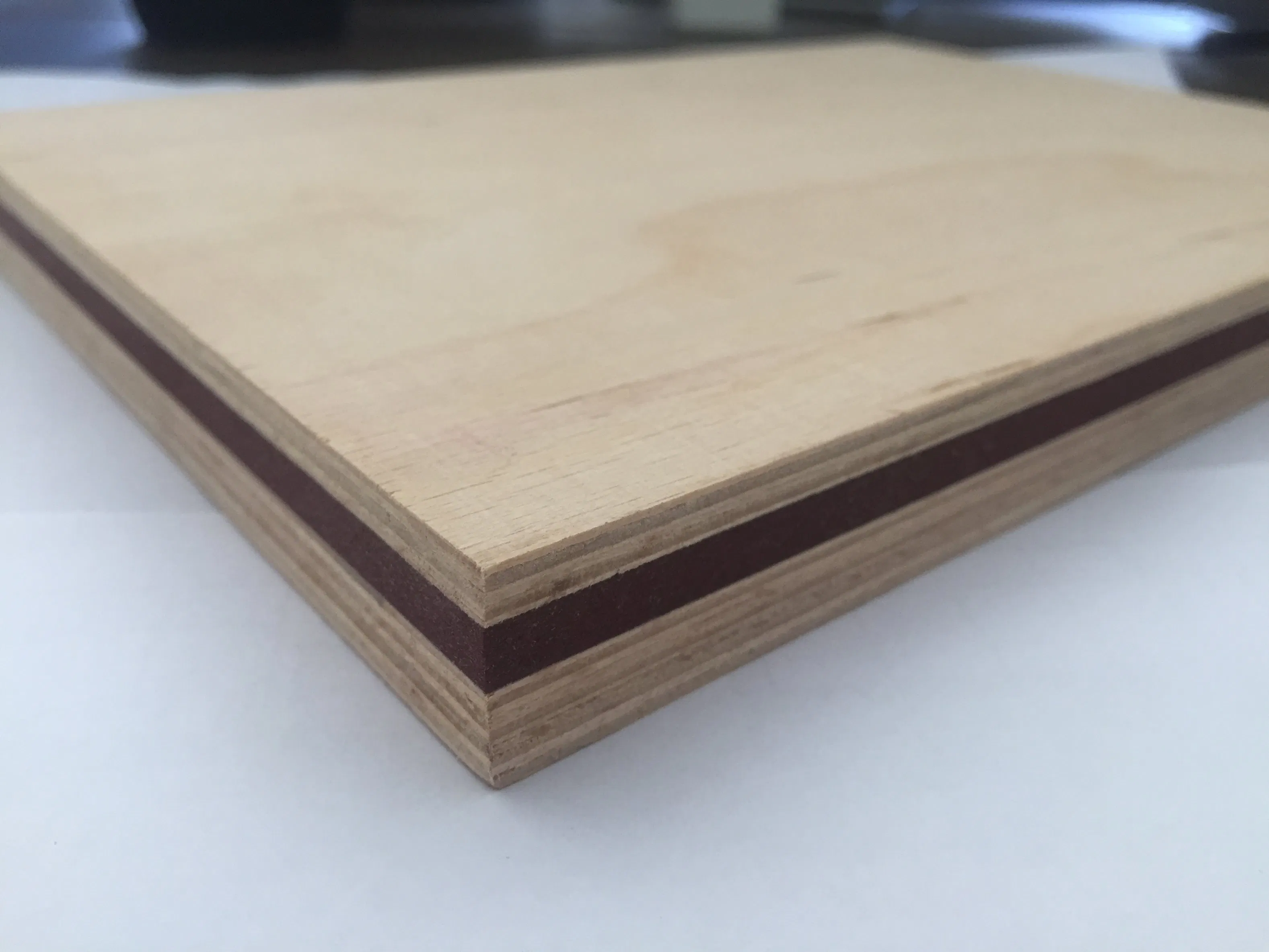

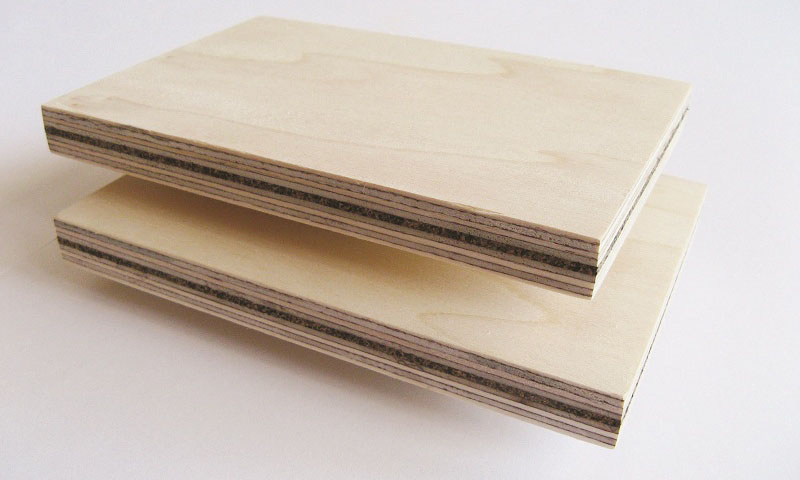

Structure	Plywood + Rubber Damping Layer + Plywood	Hardwood + Cork + Soundproofing	Plywood + Lightweight Plastic Steel Plate + Plywood
Areal Density	≥15.5kg/m2	About 12kg/m2	About 10kg/m2
Sound Insulation	≥32dB	About 31dB	About 30dB
Flame Retardant	Flame Retardancy	Flame Retardancy	Flame Retardancy
Static Bending Strength	≥40MPa	≥50MPa	≥50MPa
Elastic Modulus	≥4000MPa	≥5000MPa	≥5000MPa

🚀

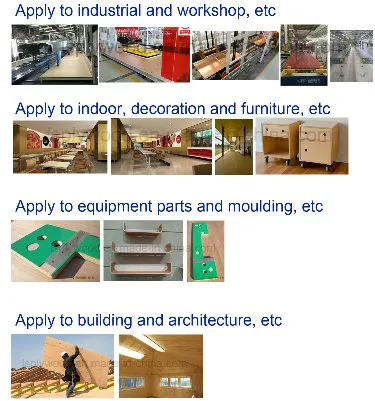

Key Applications

Internal decoration for yachts, boats, and ships.
Decorative materials for container houses, camping houses, and recreational vehicles (RVs).
High-end plywood furniture and architectural wooden structures.
Luxury plywood packing solutions.

⭐

Our Advantages

Premium Quality: Manufactured to the highest industry standards.
Large Scale Capability: Maximum sizes available up to 10' length and 6' width (1830*3050mm).
100% Natural Wood: Options include 100% Birch, Basswood, or Beech.
Custom Processing: Specialized curve wood processing and custom technical drawings.

🏭

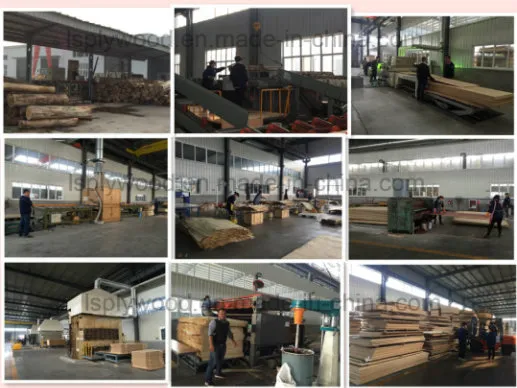

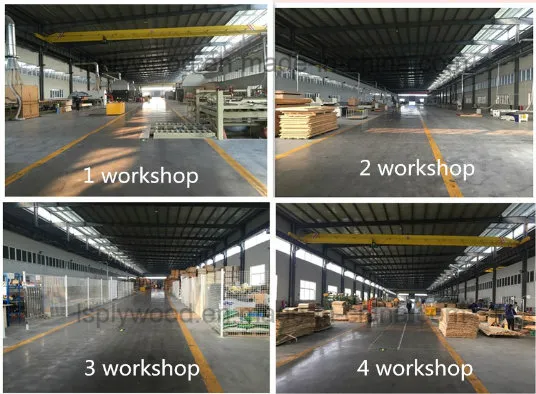

Production Excellence

❓

Frequently Asked Questions

What is the primary function of these composite acoustic panels?

They are designed for professional noise isolation and vibration damping, primarily used in high-speed trains, industrial flooring, and vehicle interiors to create a quiet environment.

Do you support customized manufacturing (OEM)?

Yes, both OEM and ODM services are available. We can process materials and dimensions according to specific technical requests and drawings.

What is the Minimum Order Quantity (MOQ)?

The standard MOQ is one 20'FCL container, but we also accommodate Less than Container Load (LCL) orders depending on requirements.

Are samples available for testing?

Free samples can be prepared for your evaluation. Shipping costs are typically handled by the recipient and can be deducted from the first official order.

What wood species are used in the panels?

We use 100% high-quality wood materials, including Birch, Basswood, and Beech, to ensure structural integrity and durability.

How is quality control managed during production?

Quality is monitored at every stage, from timber sourcing to final piece-by-piece inspection, ensuring that every panel meets fire resistance and sound insulation standards.
