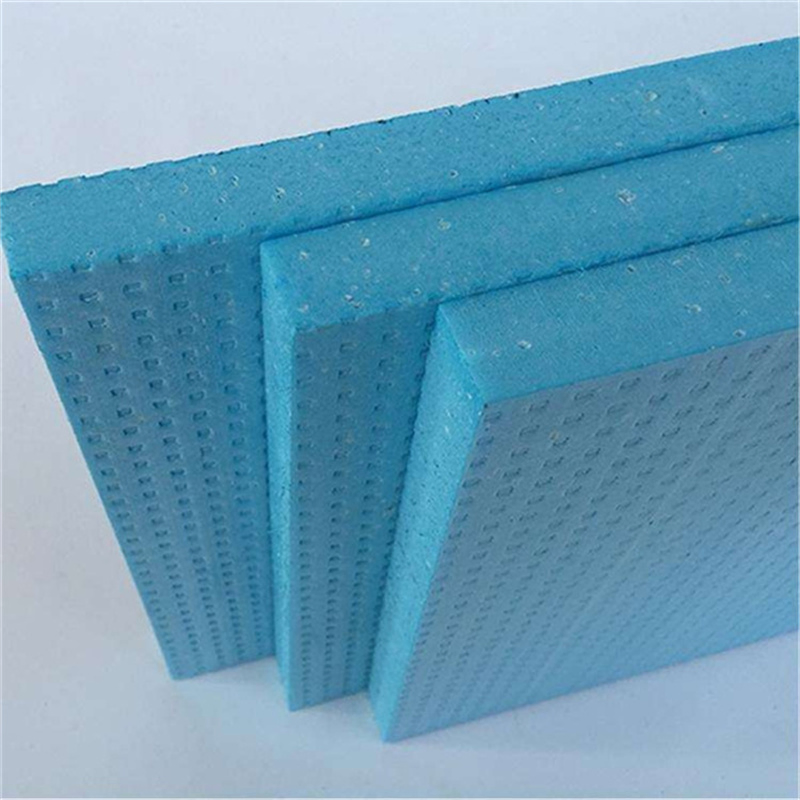

Good Quality Low Price XPS Rigid Extruded Polystyrene Foam Compressed Sheet

1 / 5

Good Quality Low Price XPS Rigid Extruded Polystyrene Foam Compressed Sheet

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Basic Information

Model NO.

MY-XPS -1200*600mm

Application

Balcony, External/Interior Wall, Underfloor Heating

Combustion

Lv.B1

Density

15-60kg/M3

Thickness

20/25, 30, 40, 50, 75, 100mm

Material

Polystyrene Resin

Refractoriness

-50-75℃

Color

Yellow/Black

Product Description

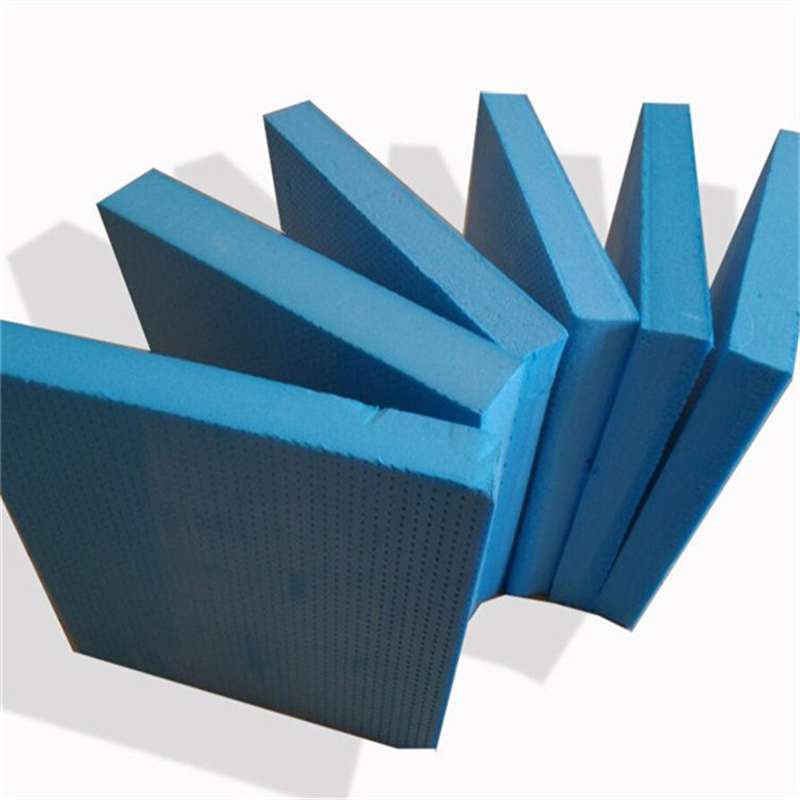

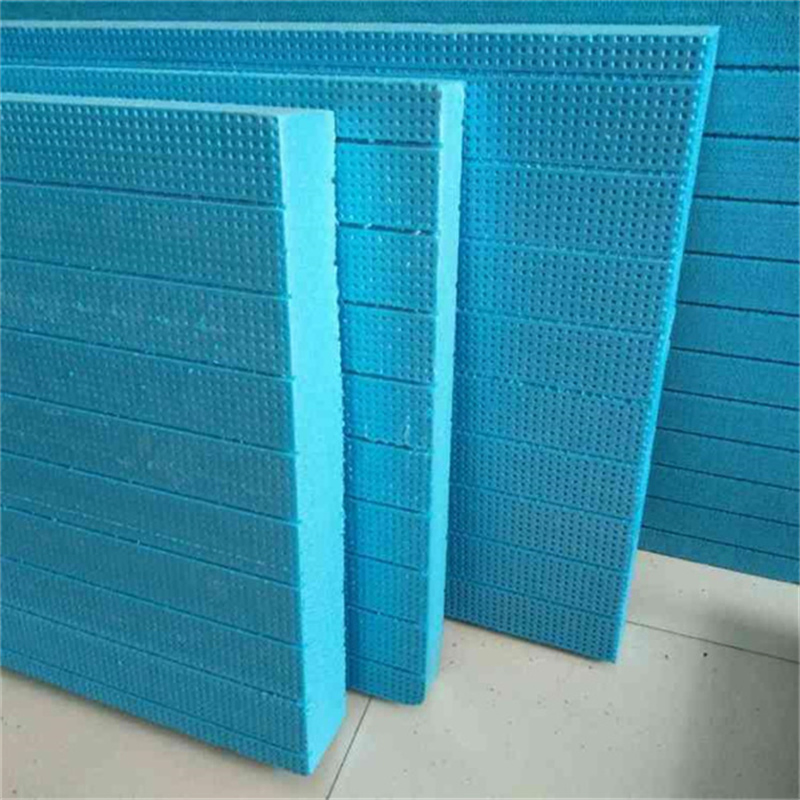

XPS Rigid Extruded Polystyrene Foam Sheet

XPS Foam Board is fabricated mainly from polystyrene resin with a small amount of additives through a specialized extrusion process. During extrusion, polystyrene particles are shaped into a continuous closed-cell foam structure under high temperature and pressure.

Low thermal conductivity (≤0.035 W/(m·K))
High compressive strength (more than 1.2MPa)
Fire-protection rating B1
Lightweight and easy to install

Technical Data

Property	Value	Unit	Standard
Service temperature	-50~75	℃	GB/T 5480
Thermal conductivity (25℃)	0.026~0.035	W/(m·K)	GB/T 10295
Flammability	Class B1	W/(m2·K)	GB 8624
Dimensional stability	0.3~1.0	%	GB/T 8811
Compressive strength	≥1.2	MPa	GB/T 8813
Hydrophobicity	≥98	%	GB/T 8810

Product Details

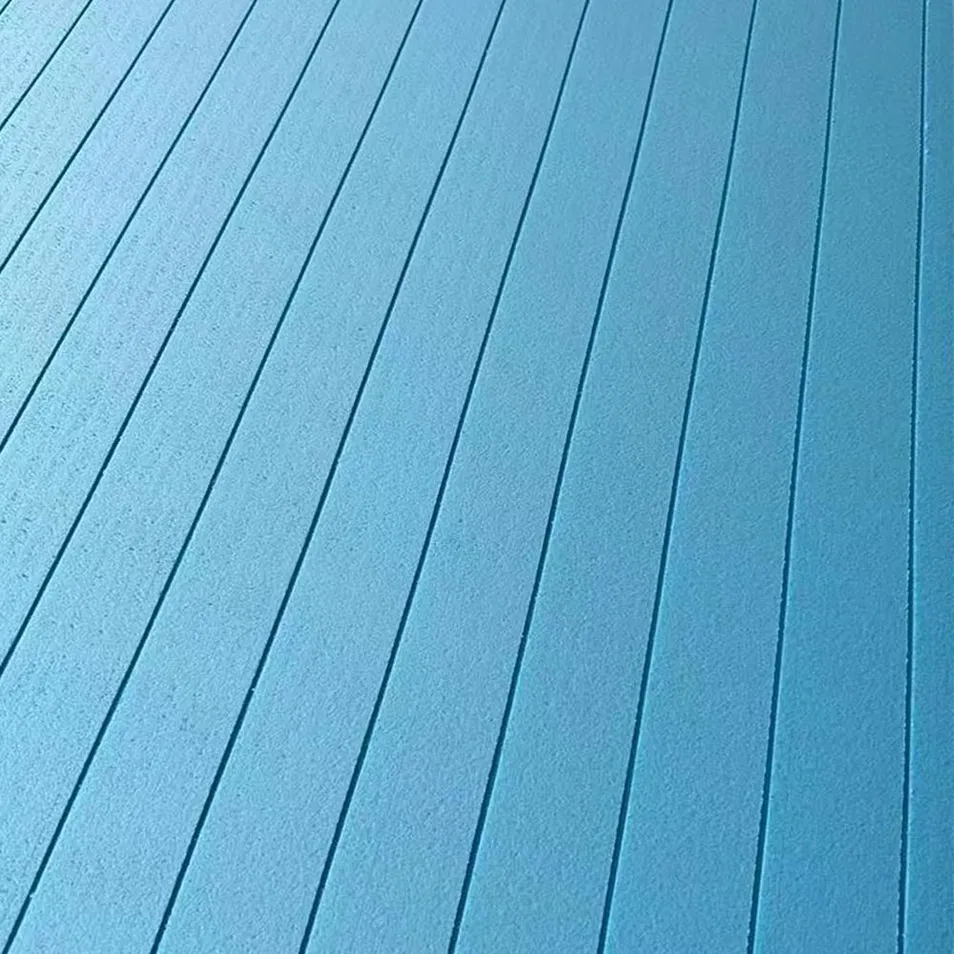

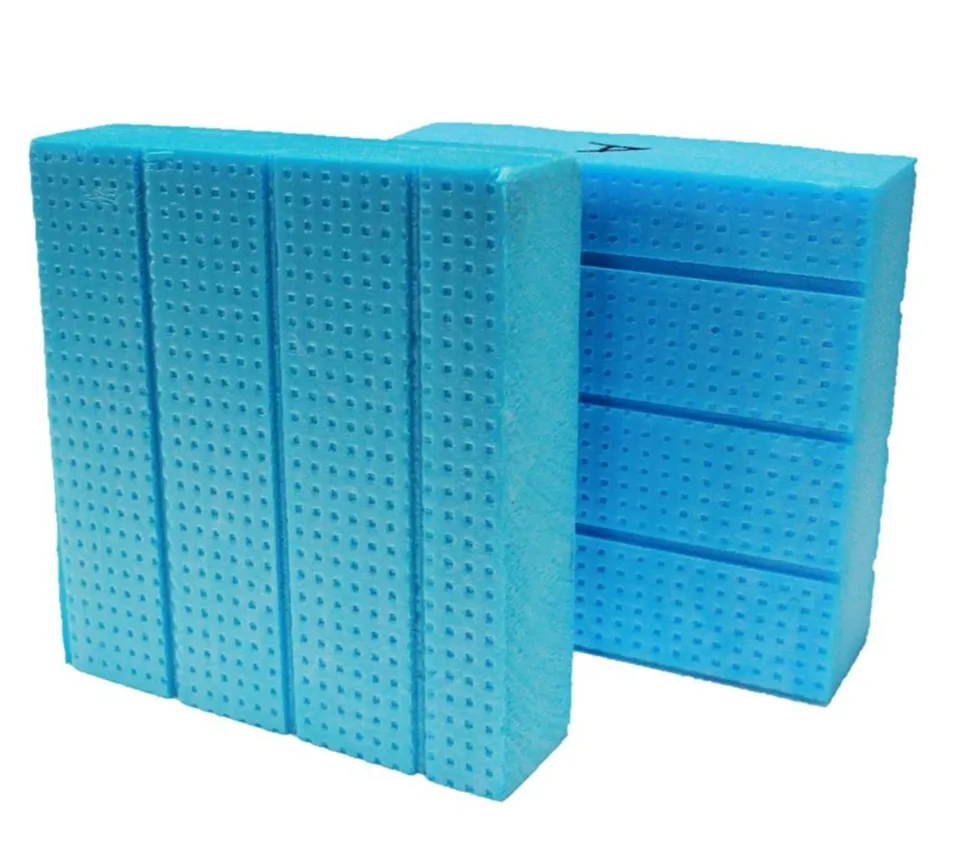

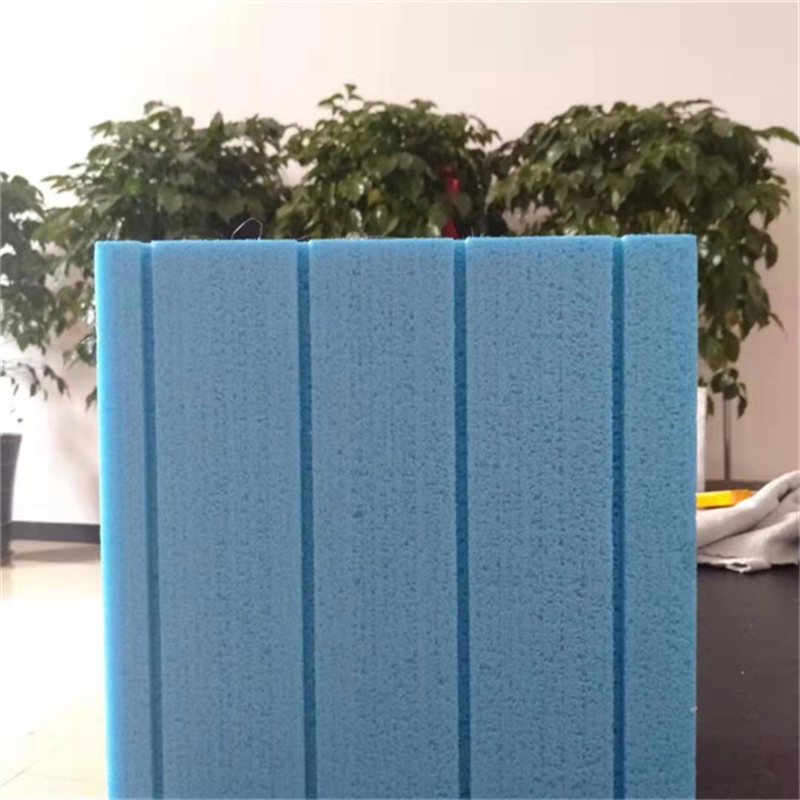

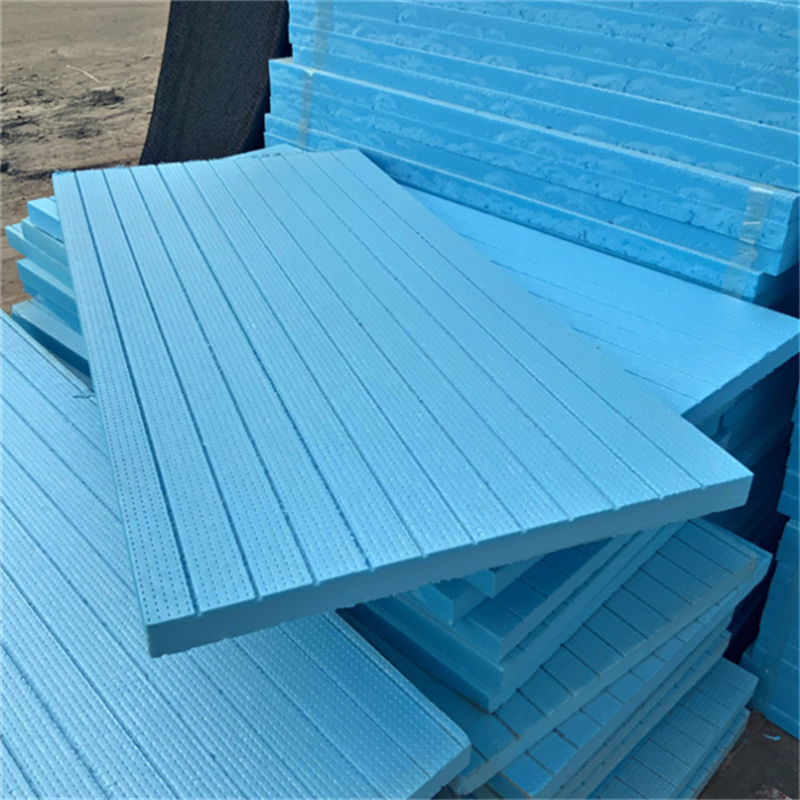

Surface Treatment: Planed, Fluted, or Embossed

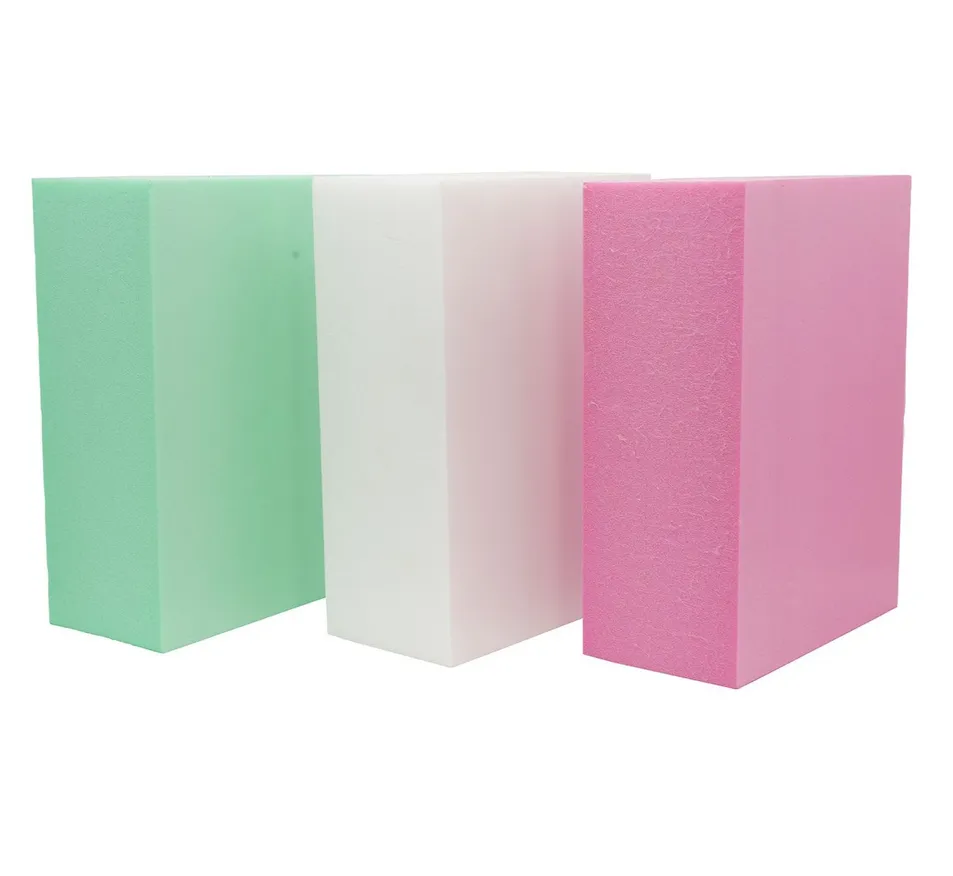

A Range of Color & Pattern Options

Product Specification

Model	Thickness (mm)	Length (mm)	Width (mm)
XPS-ST Series	30 - 140	1200, 1450, 1800, 2400	600, 1200

*Special specifications and more colors can be customized.

Application

XPS foam board is suitable for thermal insulation of the enclosure structure for energy-saving renovation of new and existing buildings. It is also used as lightweight filler in road, bridge, tunnel and other engineering projects.

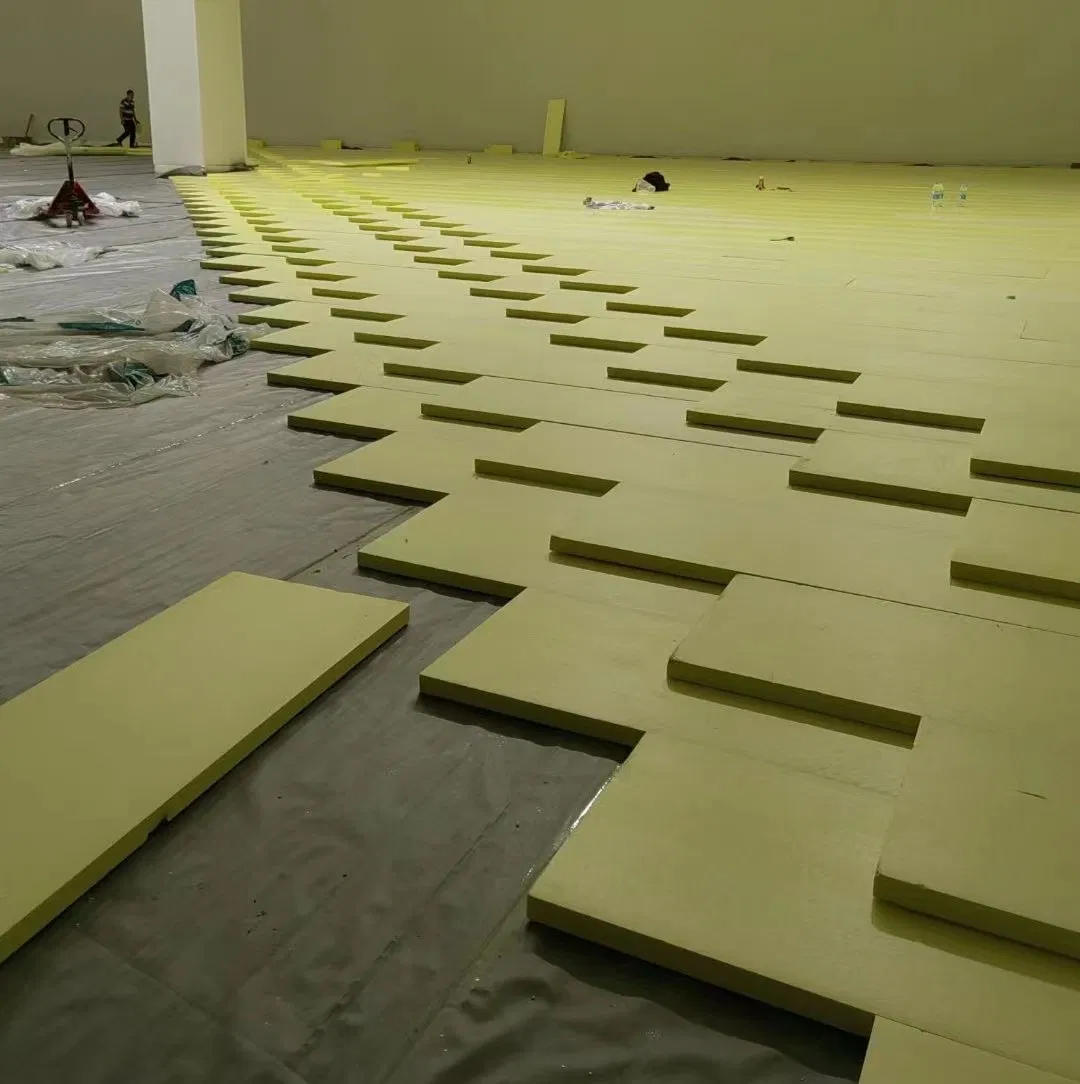

Floor Insulation

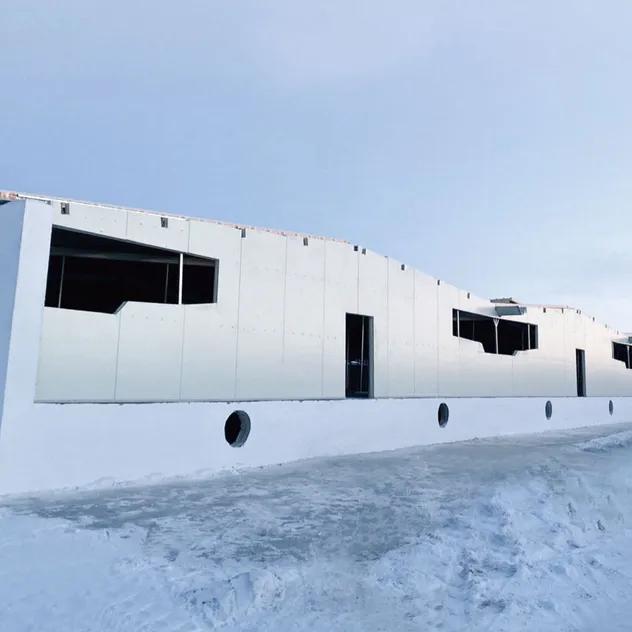

Cold Storage Insulation

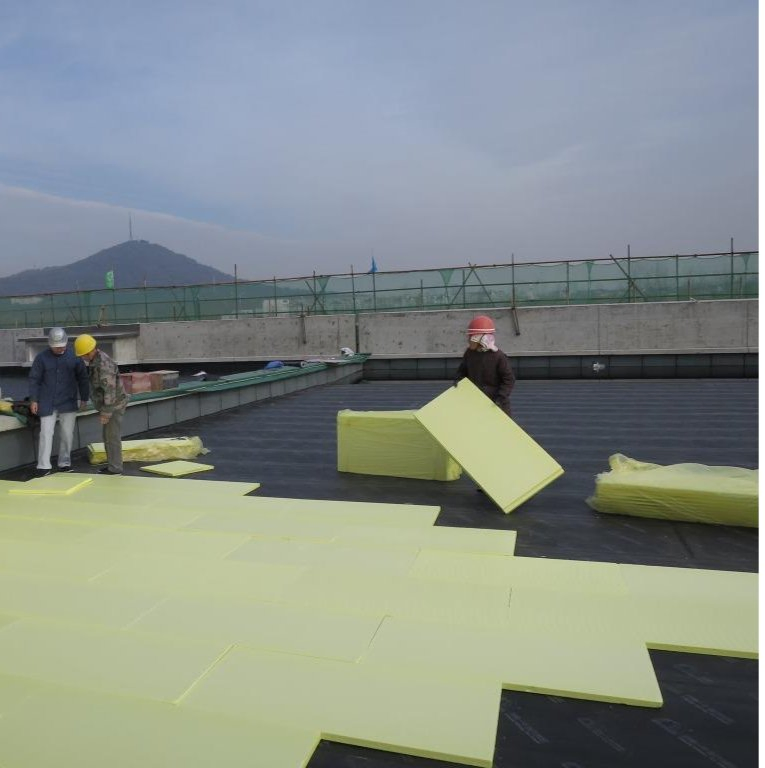

Roof Insulation

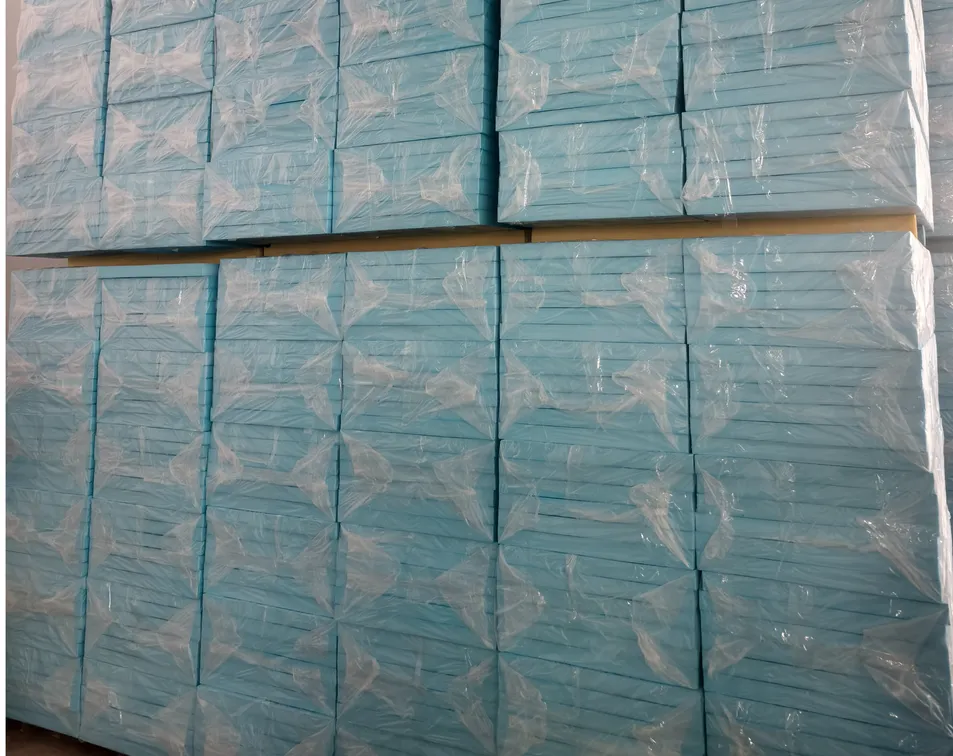

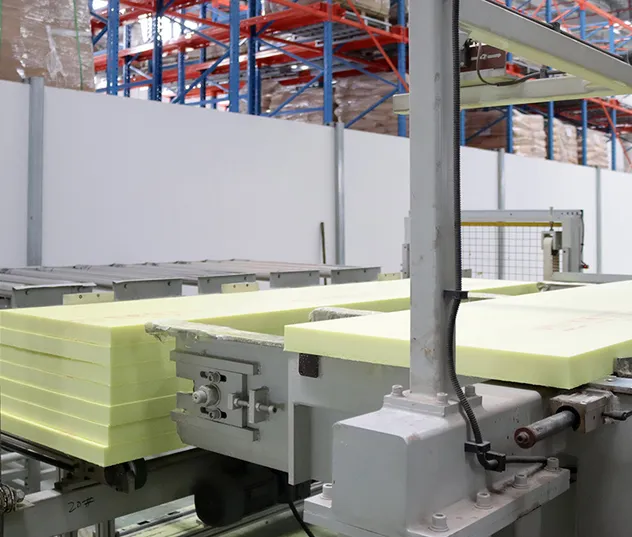

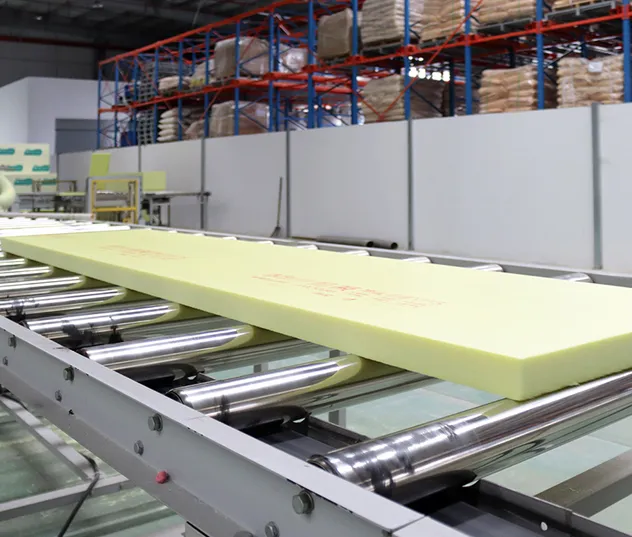

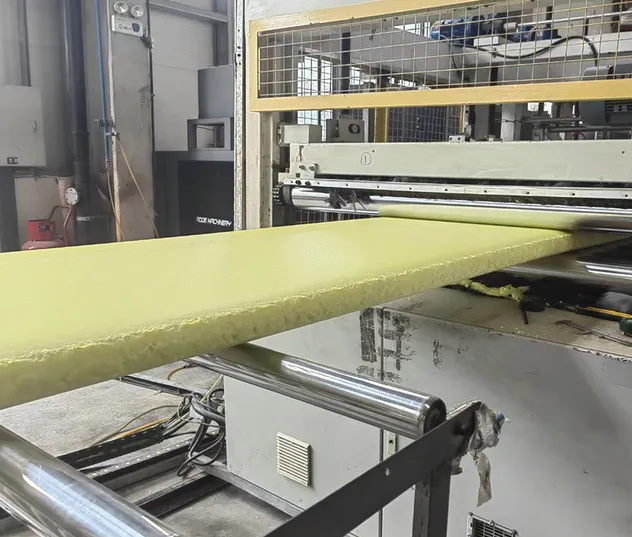

Packing & Our Factory

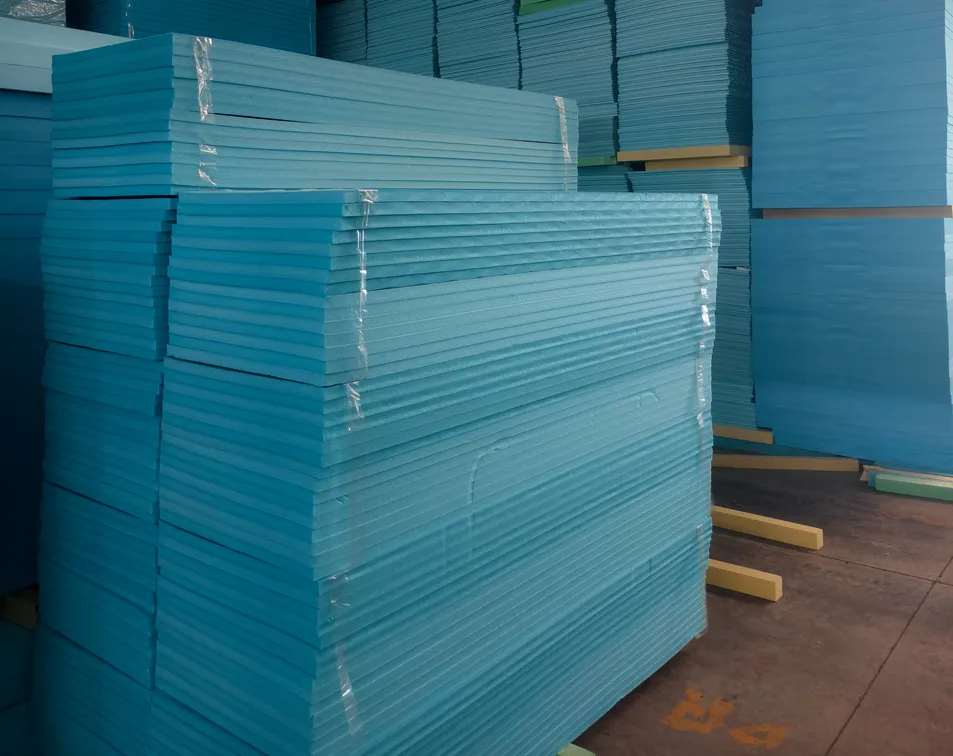

Products are supplied in polyethylene packages for easy handling, transportation, storage and identification. Should be stored indoors or under a waterproof covering.

Frequently Asked Questions

What is XPS foam board used for?

XPS (Extruded Polystyrene) foam board is primarily used for thermal insulation in walls, roofs, floors, and cold storage, as well as lightweight filler for civil engineering projects like roads and bridges.

What is the fire rating of this material?

Our XPS foam board achieves a Class B1 fire-protection rating, meaning it has excellent flame-retardant properties suitable for building safety standards.

Is the material water-resistant?

Yes, it has a high hydrophobicity rating of ≥98%. The closed-cell structure effectively prevents water absorption, maintaining its insulation performance in damp environments.

Can I request a specific surface finish?

Absolutely. We offer various surface treatments including planed, fluted, and embossed finishes to meet different adhesion and application requirements.

What are the main advantages of XPS over other insulation?

XPS offers a combination of very low thermal conductivity and exceptionally high compressive strength (up to 1.2MPa or more), making it durable under heavy loads while providing superior energy efficiency.

How should the boards be stored?

For optimal preservation, XPS boards should be stored indoors or under a waterproof covering to protect them from prolonged UV exposure and extreme weather.
