Product Description

Basic Information

Model NO.

Rubber compression plates and seals

Maximum Voltage

20KV~100KV

Thermal Rating

200 200

Specification

Customization

Origin

China

Capacity

50,000

Packaging & Delivery

Package Size

5.00cm * 5.00cm * 5.00cm

Gross Weight

5.000kg

Product Description

Product Introduction:

High quality gasket material sheets, composed of aramid, glass, inorganic, or carbon fibers, NBR rubber as a binder and different fillers. Fiber gasket sheets with different chemical, thermal and mechanical resistance are made to endure at different loadings, even the most demanding conditions.

Key Features:

High resistance to seating stress.
Low creep relaxation.
Wide range of operating temperatures and pressures.
Resistance to an extensive range of chemical products.

Sealpilot NO.	Pressure	Temperature	Practical Conditions
PNG8100	3MPa	Max 260ºC	Air, water, petroleum oil, neutral saline solution for low pressure interface gaskets
PNG8108	8MPa	Max 300ºC	Heat exchanger tubes, valves, water, fuel, coolant and air
PNG8208	10MPa	Max 400ºC	High-temperature steam machinery, compressed air

Size (mm)	Thickness	0.4, 0.5, 0.8, 1.0, 1.2, 1.5, 2.0, 3.0, 4.0, 5.0-10.0 (Customizable)
Size (mm)	Width	15001500, 15003000, 15004500, 12701270

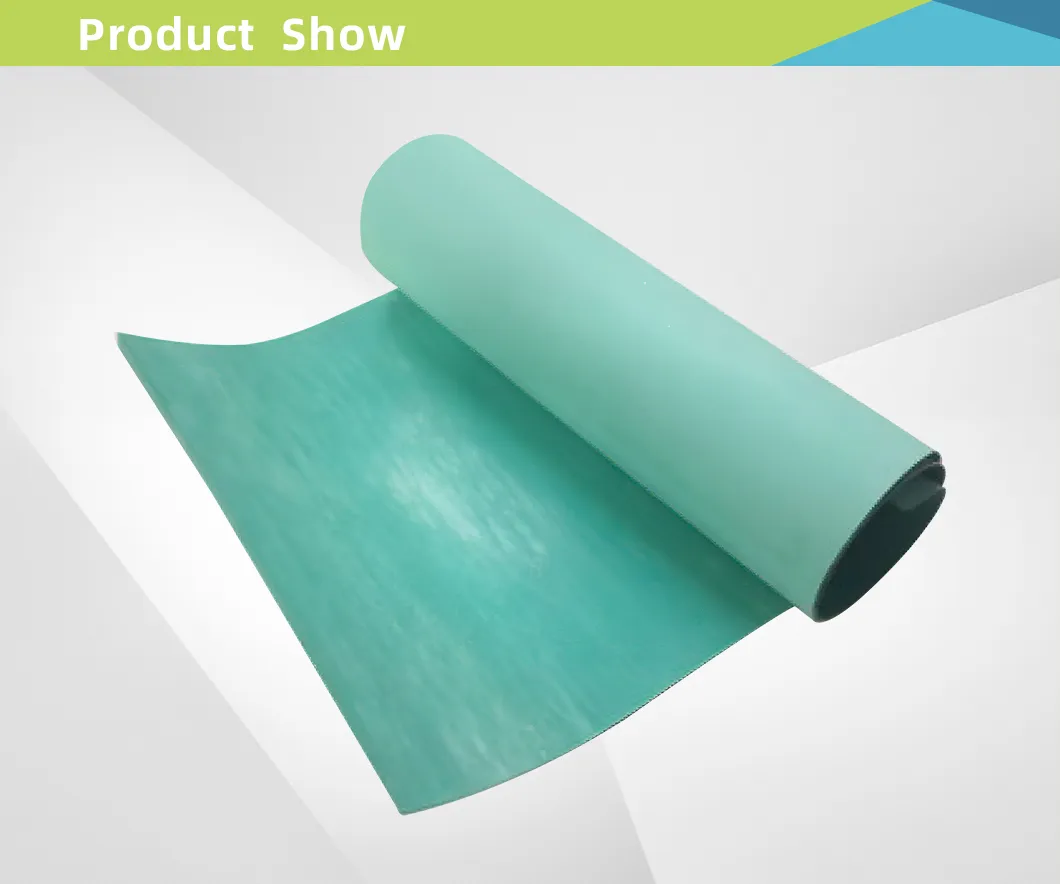

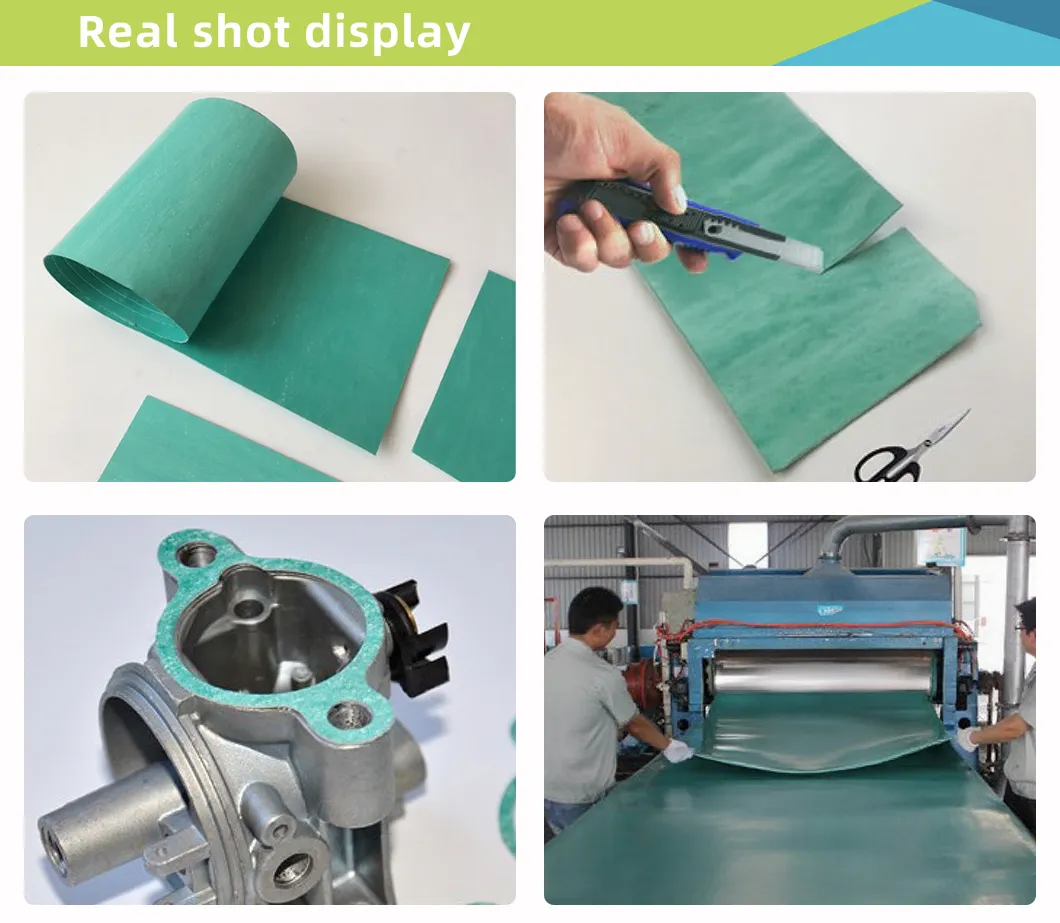

Product Gallery

Frequently Asked Questions

What are your main products?

We provide professional Transformer Accessories and Insulation Materials with over 15 years of industry experience.

Why should we choose your products?

Our experienced engineering team offers high-value design guidance to ensure product performance. Our strict quality control and adherence to tolerance standards ensure easy assembly.

How do you control product quality?

We maintain a complete QC system for chemical composition, physical, and electrical properties for every production phase. All goods are tested to international standards before shipment.

Do you accept product customization?

Yes, we fully support OEM and ODM services to meet specific technical requirements.

Do you have products in stock?

We maintain stock for standard models. Special products or large-scale orders are produced according to specific order requirements.

What are the available payment terms?

We typically accept various payment methods including T/T, L/C, Western Union, and Cash.
