Product Description

Basic Information
Model NO.
FCB-004
Fire Rating
A1
Material
Cement
Grade
Grade a
Thickness
10mm
Appearance
Panel
Edge
Square
Shape
Rectangle
Usage
Building
Type
Fiber Cement Board
Transport Package
Wooden Pallet+Plastic Cover+ Corner Armer
Specification
CE, SGS, ISO, NZ Standard
Production Capacity
20000pieces Per Day
Product Description & Technical Data

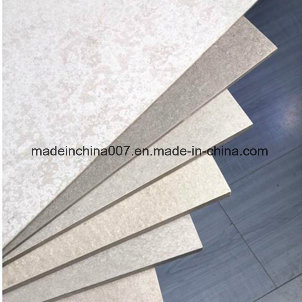

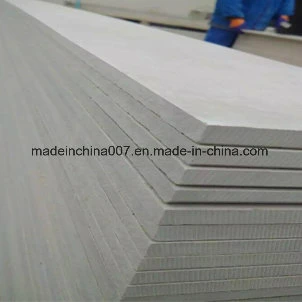

Compressed Fibre Cement Sheet
Raw Materials: Cement, Quartz Sand, Fiber
Color: Gray
Density: ≥1.20g/cm³
Moisture Content: ≤10%
Water Absorbing: ≤55%
Thermal Conductivity: Average ≤0.20W/MK
Bending Strength: Transverse ≥11.0N/mm³ / Vertical ≥8.5N/mm³
Fire Resistance: Class A (GB8624-A)
Sizes: 1220×2440, 1200×2400, 600×1200, 600×600
Thickness Range: 3.5mm - 30mm
Key Performance Features

Fire Resistant

Flame resistant to combustion at 800°C and remains flameless at 1200°C. Grade A Non-Flammability.

Weather Resistant

Resistant to deformation in wet, hot, and dry conditions. Operates at -40°C. Low expansion rate of 0.26%.

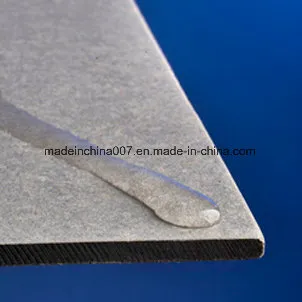

Water & Damp Proof

Remains intact after soaking for one month. No swelling or disintegration through freeze/thaw cycles.

Eco-Friendly

Does NOT contain toxic ingredients, asbestos, formaldehyde, or ammonia.

Sound Insulation

Wall systems range between 44dB and 47dB. Superior heat insulator with 0.216 W/Mk conductivity.

Bug & Mildew Free

ASTM G-21 tested. Non-nutrient to mold, fungus growth, or insect life.
Loading Capacity (20' Container)
6mm: 900pcs
9mm: 600pcs
10mm: 540pcs
12mm: 450pcs
18mm: 300pcs
Application & Production

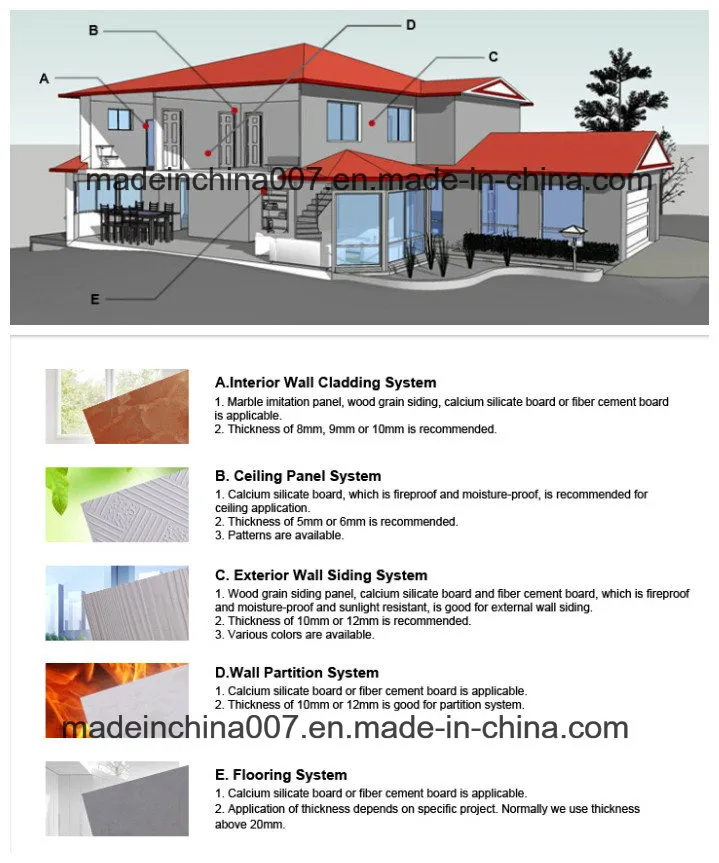

Fiber Cement Board Application

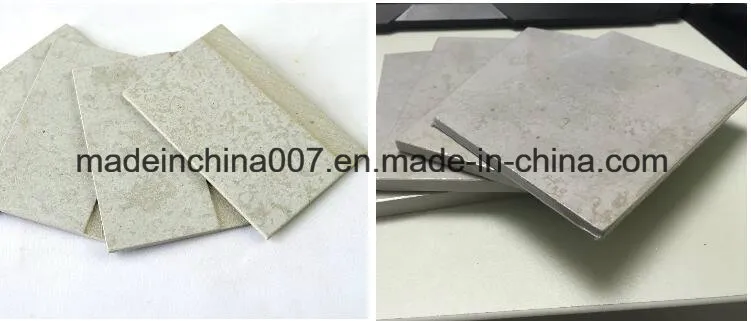

Edge Types

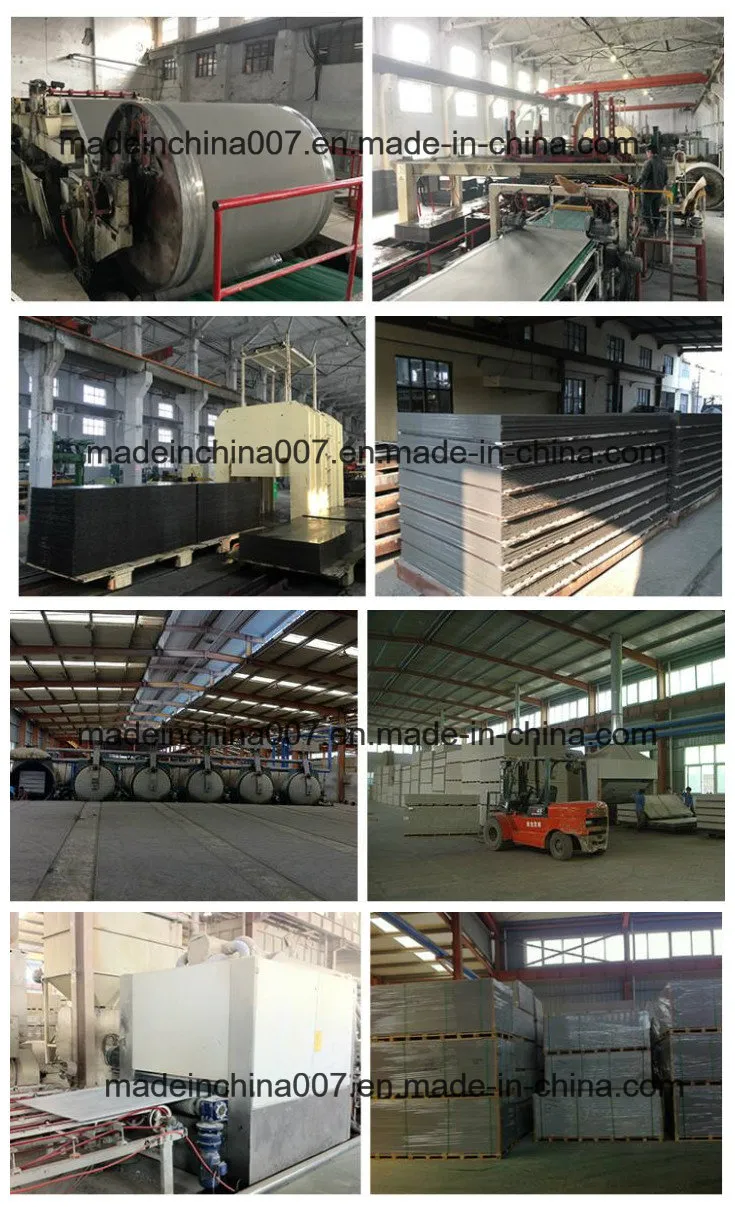

Production Line
FAQ
Q1: What are the main components of this fiber cement board?
The board is manufactured from a high-quality blend of cement, quartz sand, and cellulose fibers, ensuring a non-hazardous and durable product.
Q2: Is the board fire resistant?
Yes, it has a Grade A1 fire rating. It is non-combustible at 800°C and maintains its integrity even at 1200°C.
Q3: How does it perform in wet or humid environments?
It is specifically designed to be water and damp-proof. It remains intact even after being submerged in water for a month and is resistant to freeze/thaw cycles.
Q4: Does this product contain any asbestos?
No, this is an environmentally friendly board that contains zero asbestos, formaldehyde, or other toxic ingredients.
Q5: What are the available edge profiles?
We provide various edge options including Square edge, Recessed edge, and Bevel edge to suit different installation needs.
Q6: What is the sound insulation capability?
Walls built with this board offer excellent acoustic performance, typically ranging between 44dB and 47dB depending on the structure.
